UEFA Standard

1600x900mm Outdoor Stadium Perimeter LED Display Screen

Built for professional stadiums & sports venues
Delivers broadcast‑grade picture quality with great visibility
Complies with international sports event standards
Suitable for football arenas, FIFA/UEFA‑level matches
High reliability for large‑scale sporting events

Get a Quote

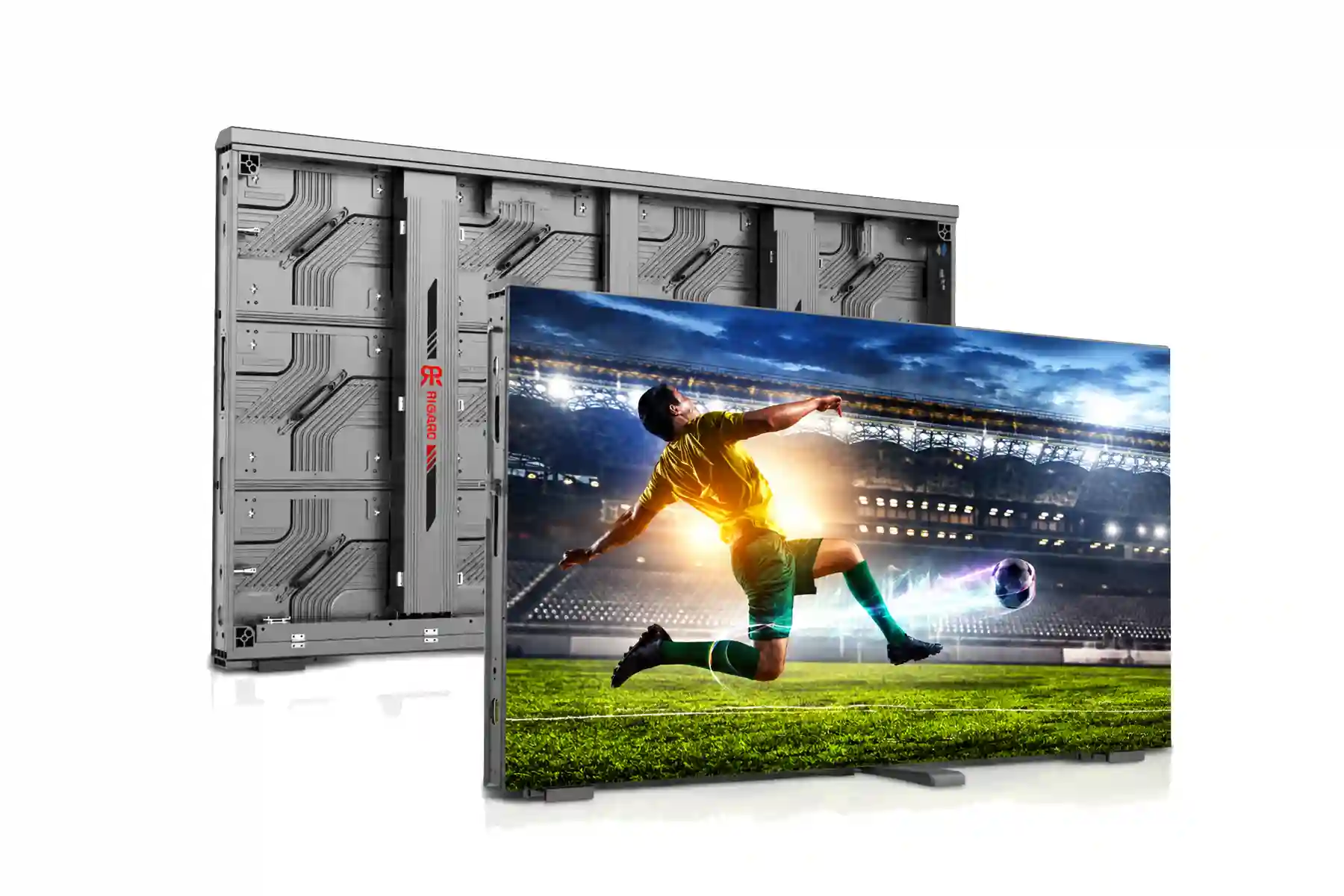

1600x900mm Outdoor Stadium Perimeter LED Display Screen

All-Around Athlete & Impact Protection Safety System

Engineered specifically for high-intensity soccer and sports venues, this stadium perimeter LED screen incorporates a multi-tier shock-absorption architecture. Combining flexible soft rubber module masks, high-density anti-collision EVA foam along the top and side frames, and heavy-duty base protection pads, the system effectively cushions high-speed athlete collisions while shielding internal LED components from severe ball strikes—fully compliant with international stadium safety regulations.

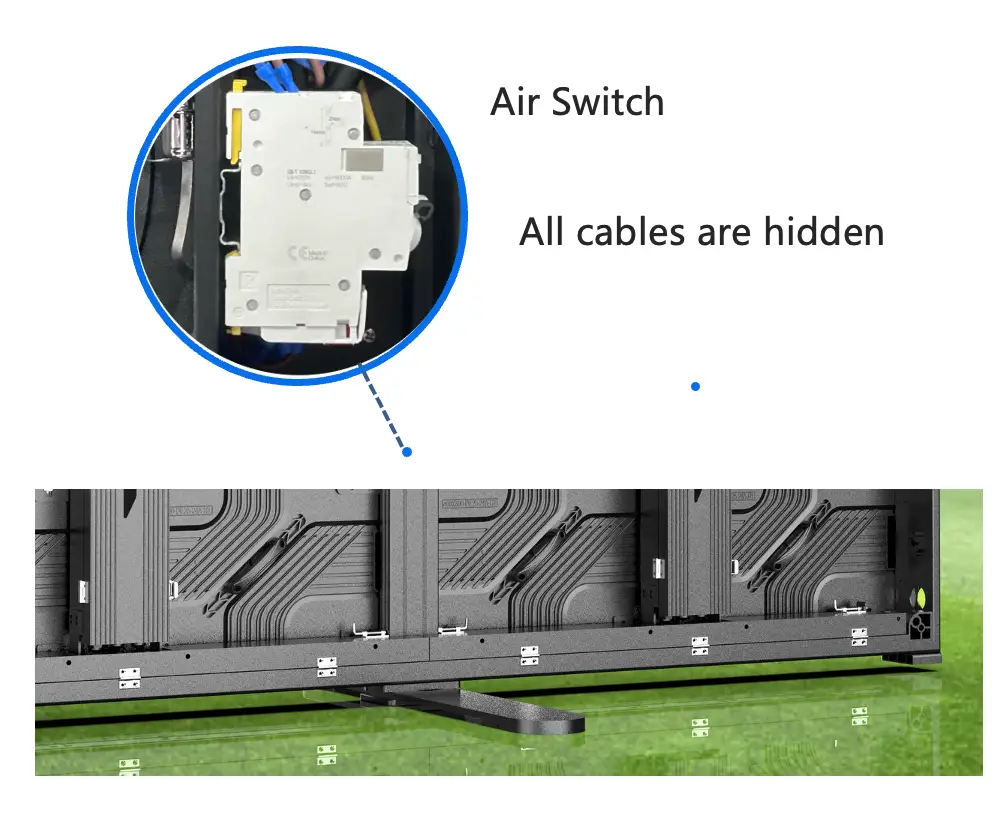

Safe & Reliable Stadium LED Display with Concealed Wiring and Power Protection

The Stadium Perimeter LED Display is designed with a smart cable management system and built-in power protection to ensure safe and reliable operation in demanding outdoor environments. Hidden cables provide a cleaner appearance and better protection, while the integrated air switch improves electrical safety and simplifies maintenance. Ideal for football stadiums, soccer fields, and professional sports advertising applications.

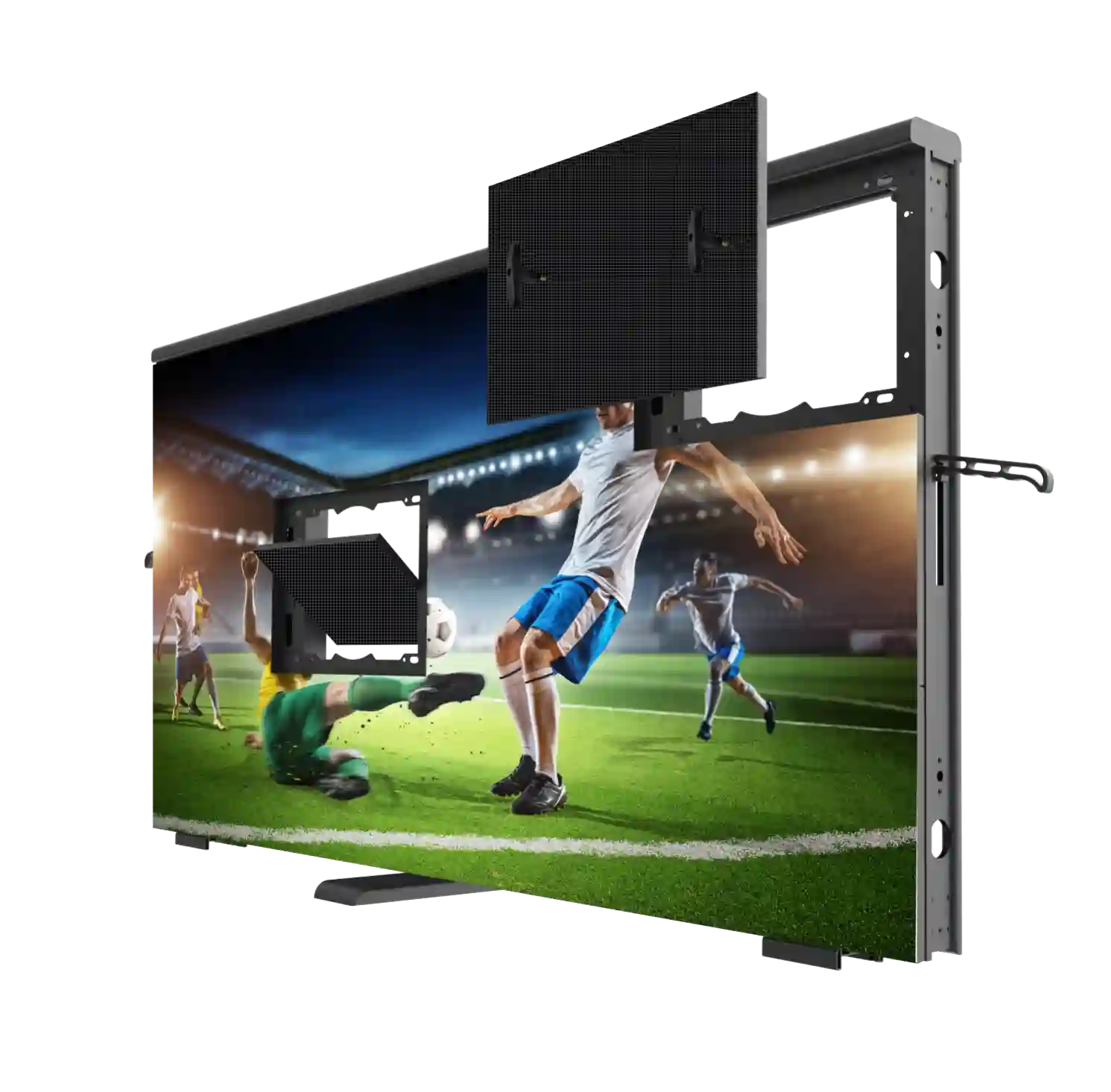

Dual Front & Rear Maintenance: Fast-Service Stadium Perimeter LED Screen

Built for zero-downtime tournament action, this stadium perimeter LED screen features full front and rear dual-access maintenance. Venue technicians can swap out individual modules in under 15 seconds directly from the pitch side, keeping sponsor ads running without disrupting live match coverage.

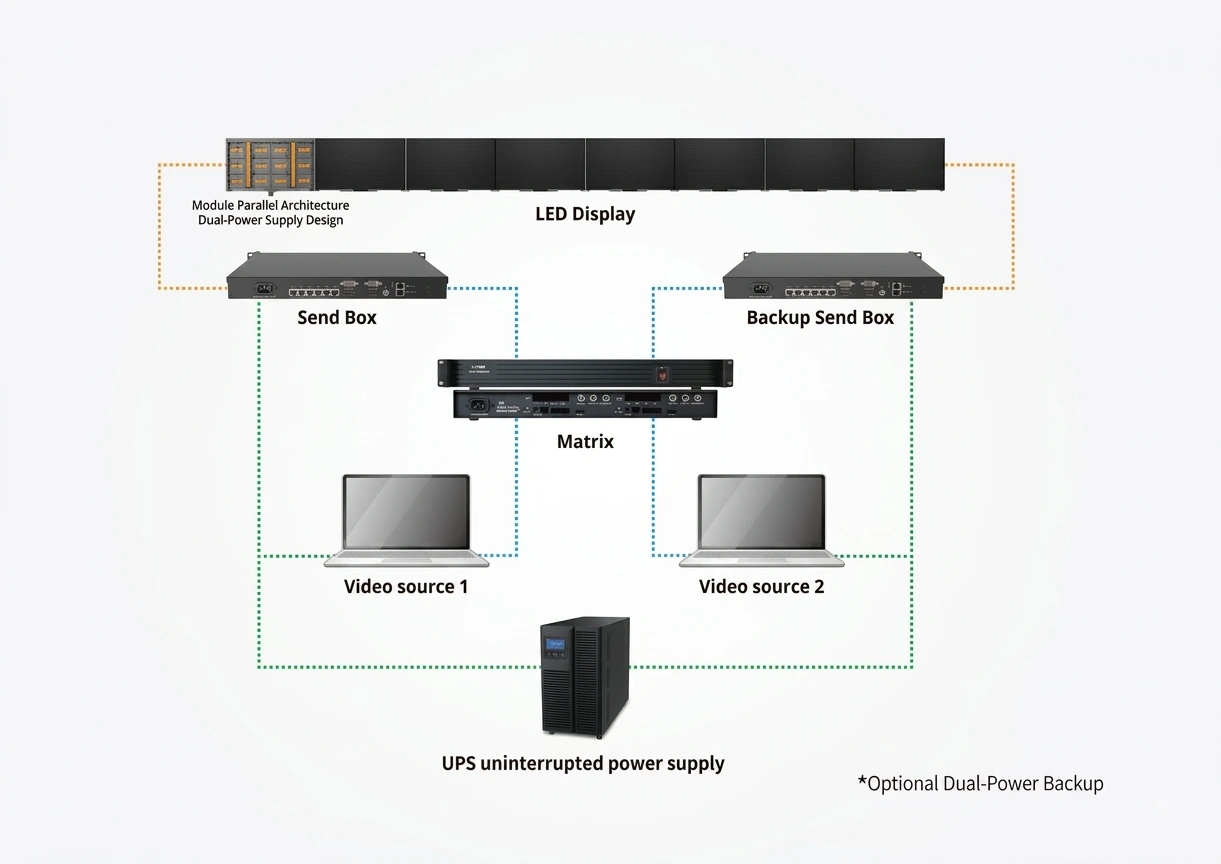

Dual Power & Signal Backup System for Reliable LED Display Performance

Ensure uninterrupted LED display operation with a professional dual-power and signal backup system. The LED display supports redundant power supply, backup sending boxes, and UPS integration to provide stable performance during critical events. Designed for stadiums, broadcast studios, control rooms, and large-scale commercial LED screens, this reliable architecture minimizes downtime and guarantees continuous, high-quality visual experiences.

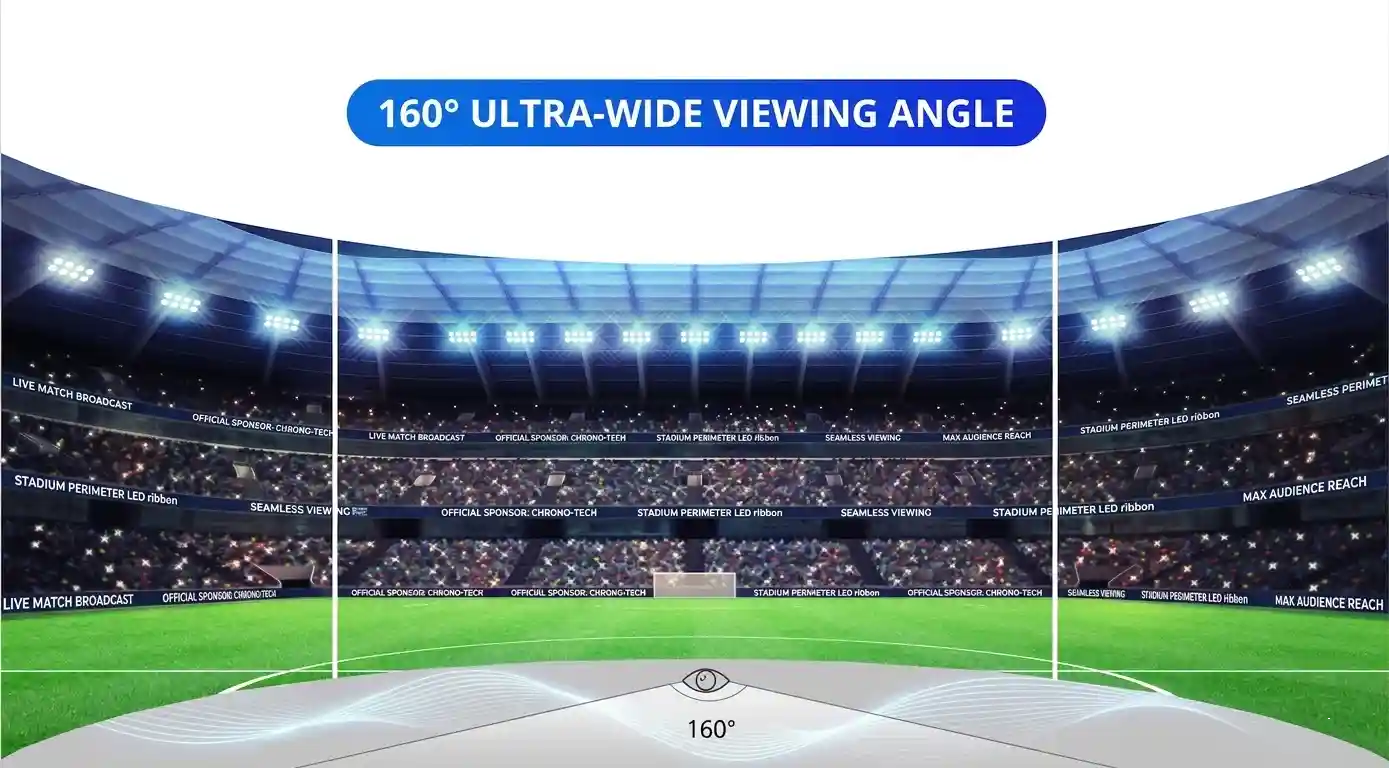

160° Ultra-Wide Viewing Angle Stadium Perimeter LED Display

Maximize audience reach and broadcast visibility with our stadium perimeter LED display, featuring a massive 160° viewing angle. Whether spectators are seated in the central stands, high-tier bleachers, or corner flags, this display ensures perfectly uniform brightness and true-to-life colors from any perspective, eliminating off-axis color distortion and dark spots.

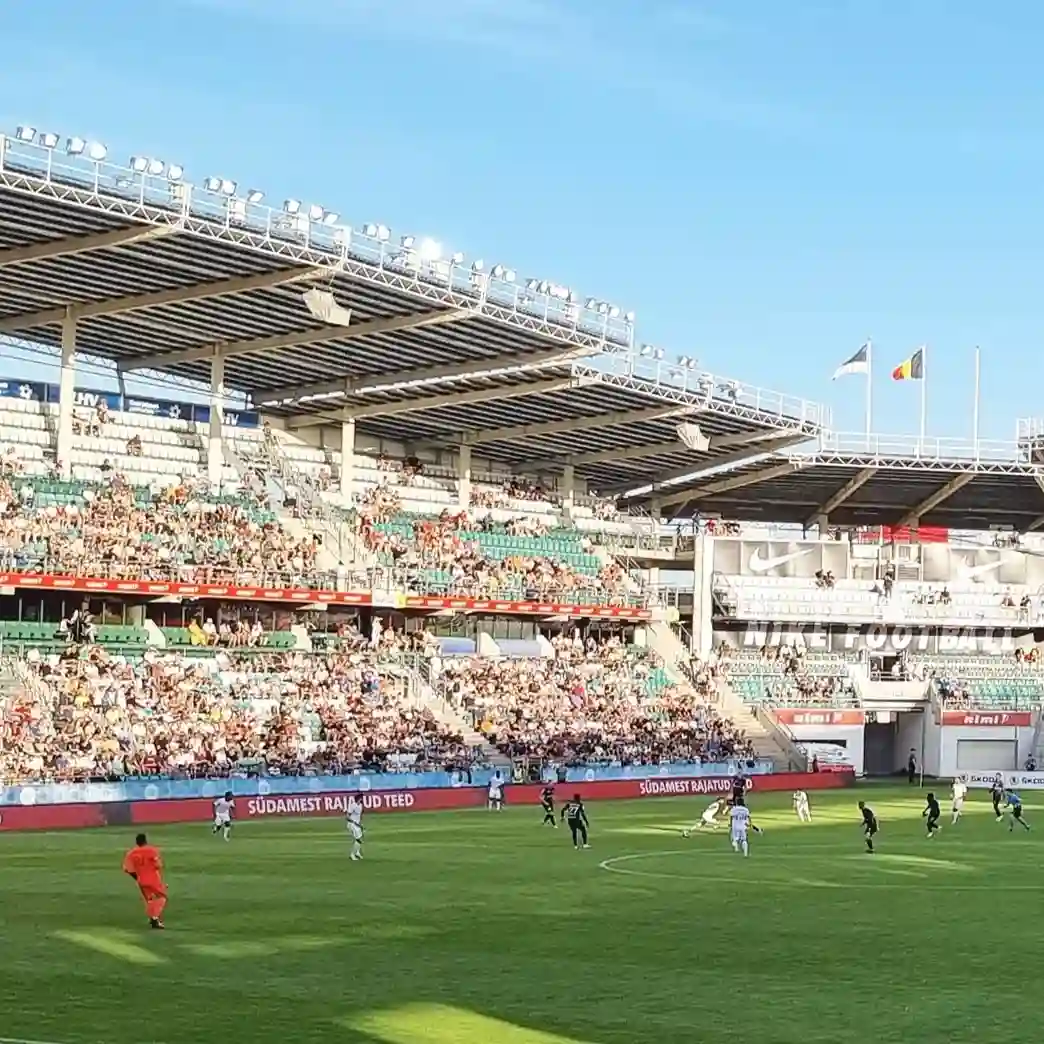

Ultra-High Brightness up to 10,000 Nits for Outdoor Stadium LED Display

Designed for outdoor sports environments, RIGARD Stadium Perimeter LED Display delivers ultra-high brightness up to 10,000 nits, ensuring clear and vivid images even under direct sunlight. The high-brightness LED technology enhances visibility for spectators, players, and broadcast cameras, making it the ideal solution for football stadiums, sports arenas, and large outdoor events.

15360Hz Ultra-High Refresh Rate Stadium LED Display

Say goodbye to screen flickering on live TV. Specifically designed for professional broadcasting, our 15360Hz high refresh rate stadium LED screen stays perfectly smooth and clear under high-speed cameras. It protects your sponsor's brand image with flawless video quality.

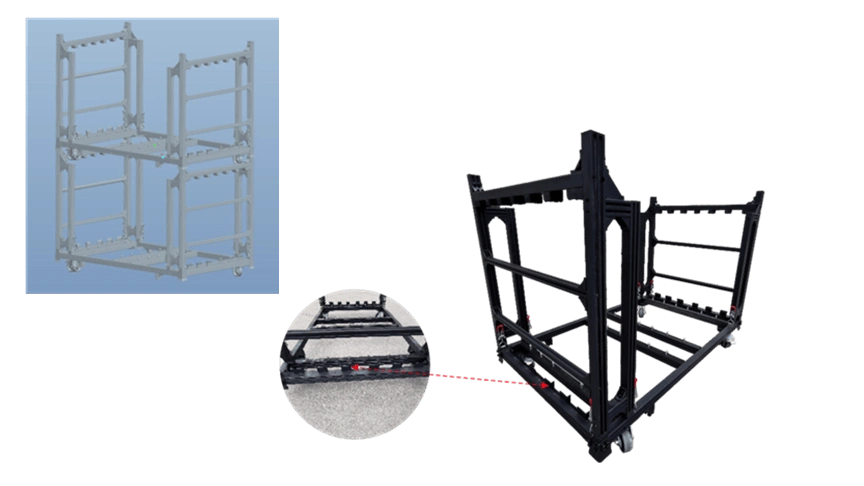

Stackable Transport Carts for Perimeter LED Screens

Streamline your venue setup and teardown process. Designed specifically for 1600*900mm stadium perimeter panels, each heavy-duty cart securely holds up to 4 cabinets. Featuring a space-saving design, these carts can be safely stacked two high, making truck loading and warehouse storage incredibly efficient.

Videos

Successfull Cases

Indoor Perimeter LED Display

Refresh Rate: ≥3840HZ; Screen Size: 80sqm

View More Images

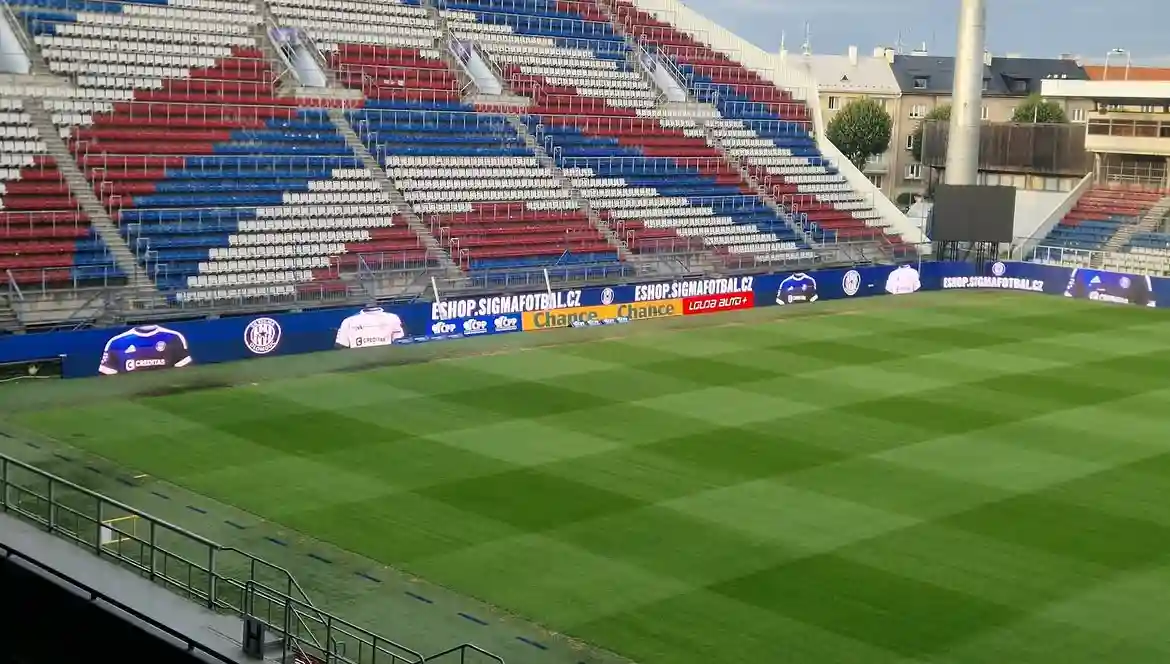

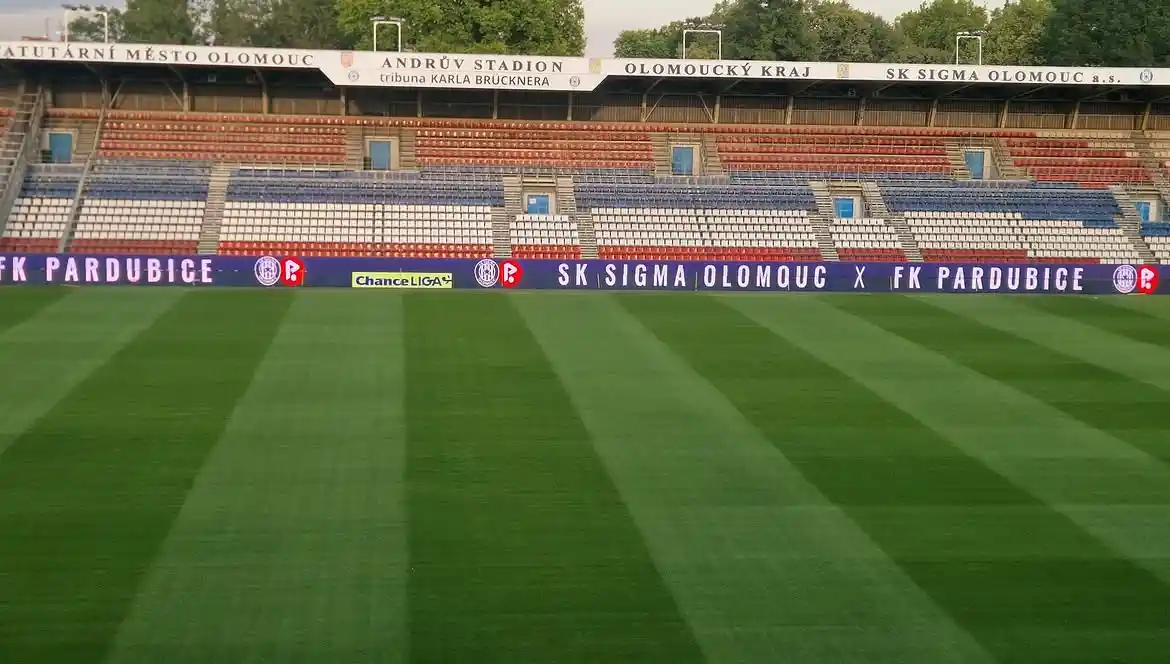

Outdoor Perimeter LED Display

Brightness: 8000 cd/㎡; Screen Size: 280sqm

View More Images

Outdoor Perimeter LED Display

Brightness: 8000 cd/㎡; Screen Size: 290sqm

View More Images

Specifications

Product Specifications

Parameter	P6.25	P8.33	P10
LED Type	SMD2727	SMD3535	SMD3535
Physical Density(dots/m²)	25600	14400	10000
Module resolution	64X48	48X36	40X30
Module size(WXH)	400X300	400X300	400X300
Display size(mm)	1600X900X90	1600X900X90	1600X900X90
Cabinet resolution	256X144	192X108	160X90
Module quantity	4X3	4X3	4X3
Panel weight(kg)	36	36	36
Maintenance	Front/Rear maintenance	Front/Rear maintenance	Front/Rear maintenance
Cabinet material	Aluminum	Aluminum	Aluminum
Brightness(Nits)	6500/8000/10000	6500/8000/10000	6500/8000/10000
Color temperature(K)	5000‑12000 Optional	5000‑12000 Optional	5000‑12000 Optional
Viewing angle(H/V)	140° /160°	140° /160°	140° /160°
Viewing distance	6‑200m	8‑200m	10‑200m
Contrast ratio	10000:1	10000:1	10000:1
Frame rate	50/60	50/60	50/60
Drive mode	1/6 scan	1/3 scan	1/2 scan
Grey scale	14‑16bit	14‑16bit	14‑16bit
Refresh rate(Hz)	3840‑7680‑15360	3840‑7680‑15360	3840‑7680‑15360
Max Power consumption(W/m²)	680	680	680
Avg. power consumption(W/m²)	120‑200	120‑200	120‑200
Protection level	IP66	IP66	IP66
Power input	AC90‑264V, 47‑63Hz	AC90‑264V, 47‑63Hz	AC90‑264V, 47‑63Hz
Working temp./Humidity(°C/RH)	‑20~60°C/10%~85%	‑20~60°C/10%~85%	‑20~60°C/10%~85%
Storage temp./Humidity(°C/RH)	‑20~60°C/10%~85%	‑20~60°C/10%~85%	‑20~60°C/10%~85%

Frequently Asked Questions

Why is the 1600x900mm cabinet size ideal for stadium perimeter displays?

The 1600mm (width) x 900mm (height) dimension is the golden standard for professional sports arenas. The 900mm height perfectly aligns with FIFA and UEFA safety regulations, ensuring it does not block the spectators' view while providing maximum commercial visibility. The 1600mm width enables rapid installation and seamless splicing, significantly reducing the total number of cabinets needed to surround the pitch.

How does the screen protect athletes during high-speed collisions?

Player safety is our top priority. Our 1600x900mm panels are equipped with a thick, energy-absorbing soft top bumper and a resilient rubber module mask. During intense matches, these protective layers safely cushion the impact of a colliding player, preventing physical injuries while simultaneously protecting the LED diodes from damage.

Can the display handle extreme outdoor weather and direct sunlight?

Absolutely. Engineered for tough outdoor environments, the cabinet features an IP65 waterproof and dustproof rating. Furthermore, it delivers an ultra-high brightness of up to 10,000 nits, ensuring that sponsor graphics remain crystal-clear and vibrant even under harsh, direct midday sunlight.

Will the sponsor ads be clearly captured by live broadcast cameras?

Yes, it is fully broadcast-optimized. With a massive 160° ultra-wide viewing angle, it reaches every corner of the stadium. More importantly, it supports an extreme high refresh rate of up to 15360Hz. This guarantees completely flicker-free and scan-line-free visuals on live TV, even when captured by super slow-motion broadcast cameras.

Is the installation and transportation process efficient for rental events?

Yes, we have streamlined the logistics. We offer custom stackable transport carts specifically designed for the 1600x900mm size, with each cart securely packing up to 4 panels. The cabinets themselves feature independent, adjustable support brackets for fast ground deployment and support quick front-and-rear maintenance, saving immense labor time for ground crews.
