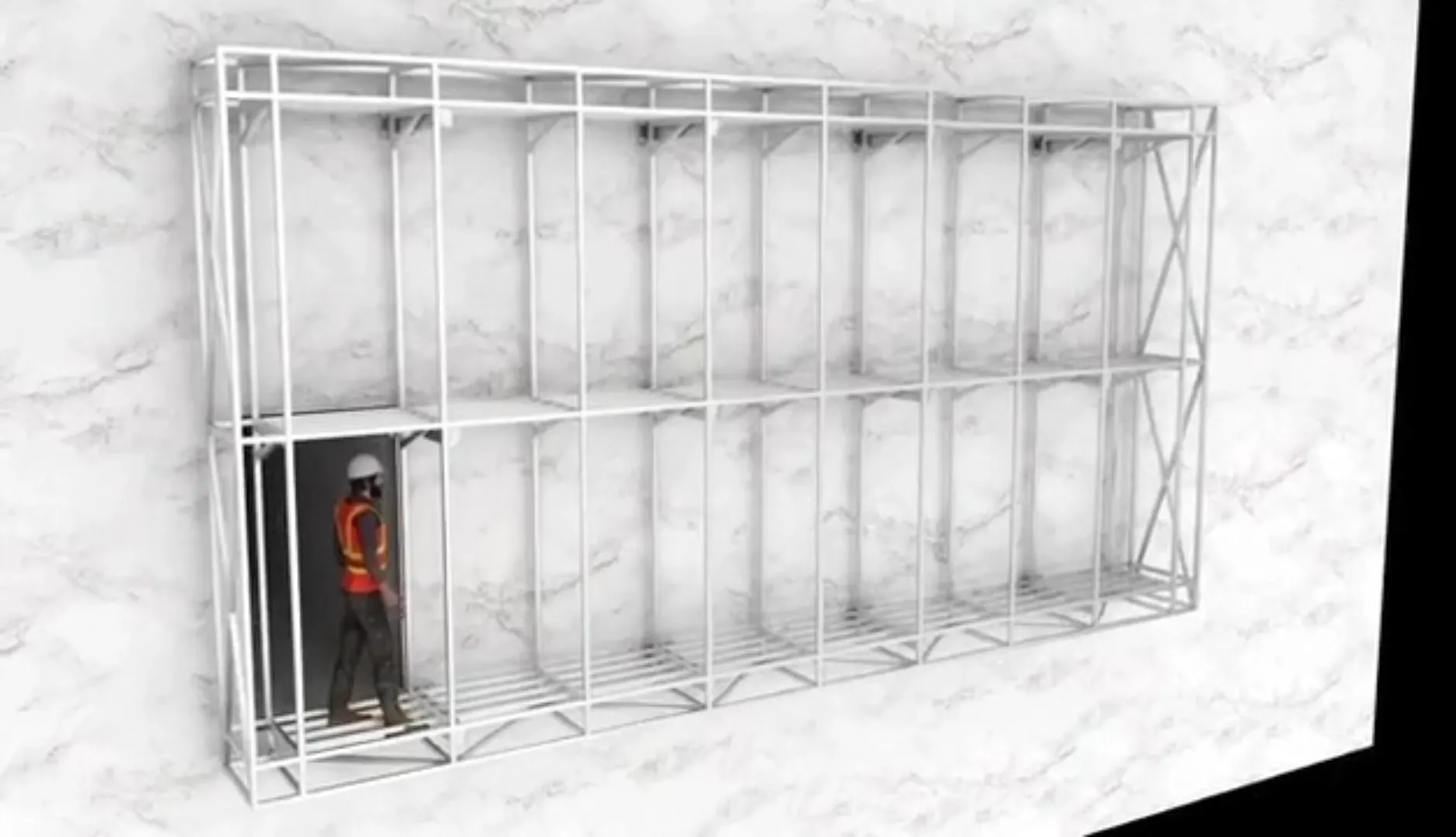

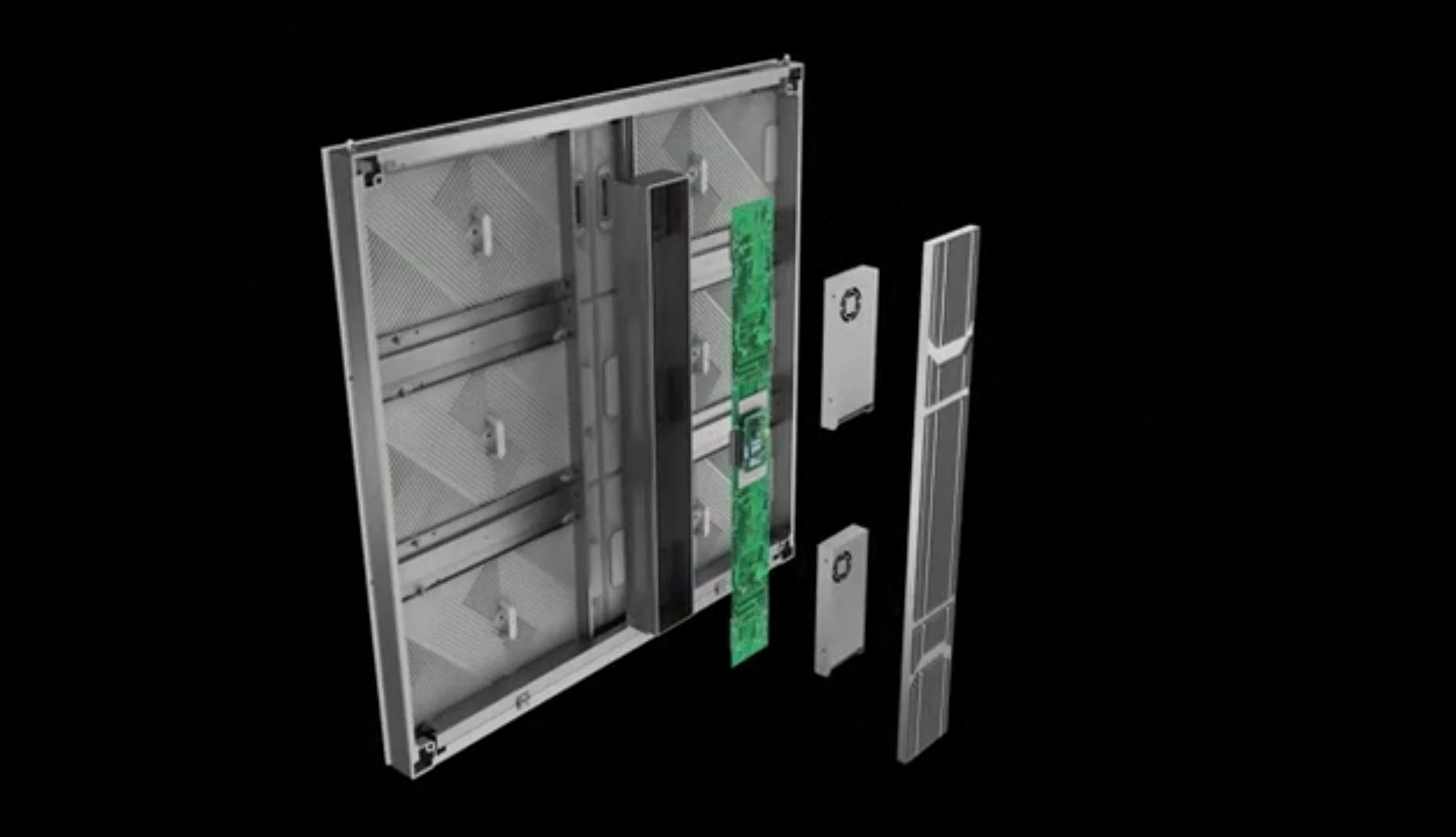

How to Install a Modular LED Video Scoreboard Display
LED Video Scoreboard

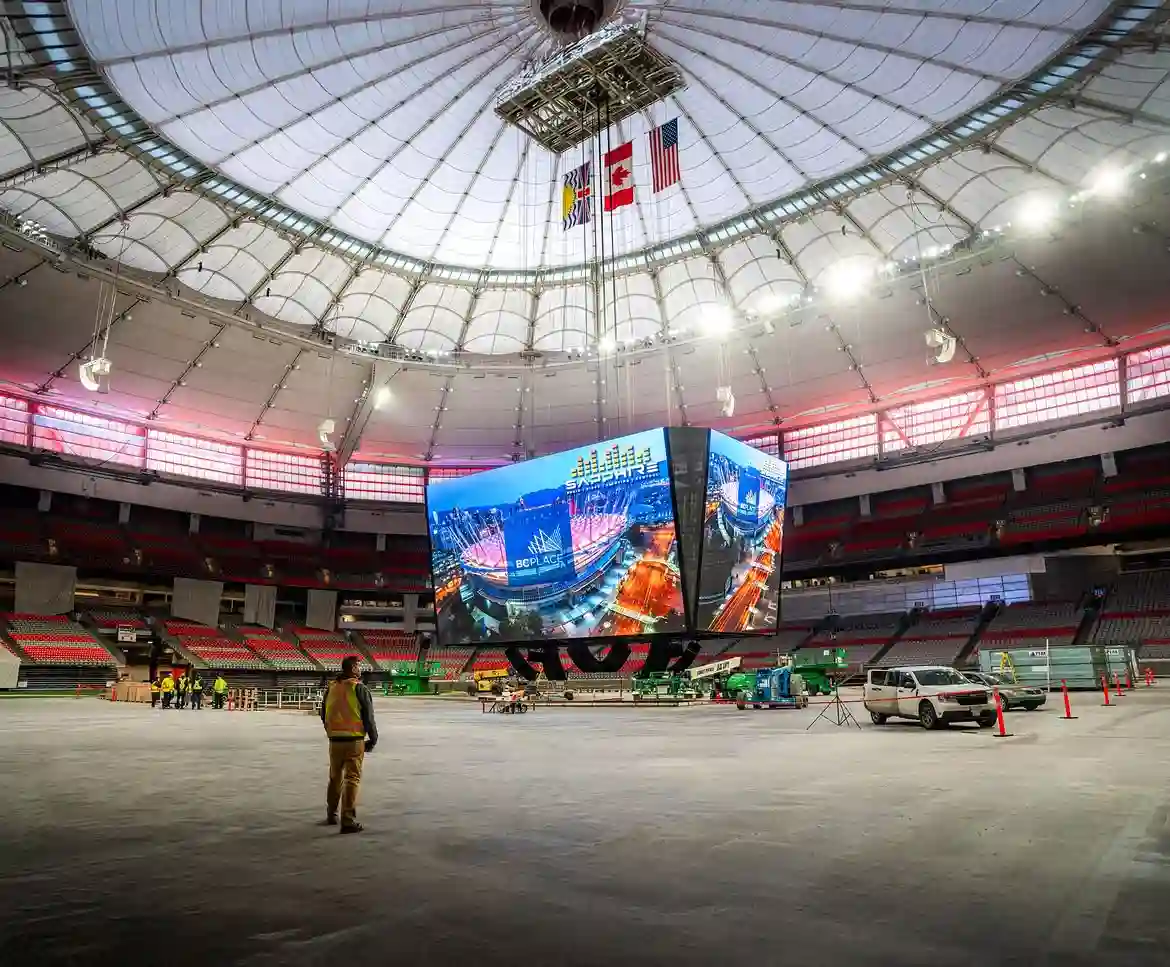

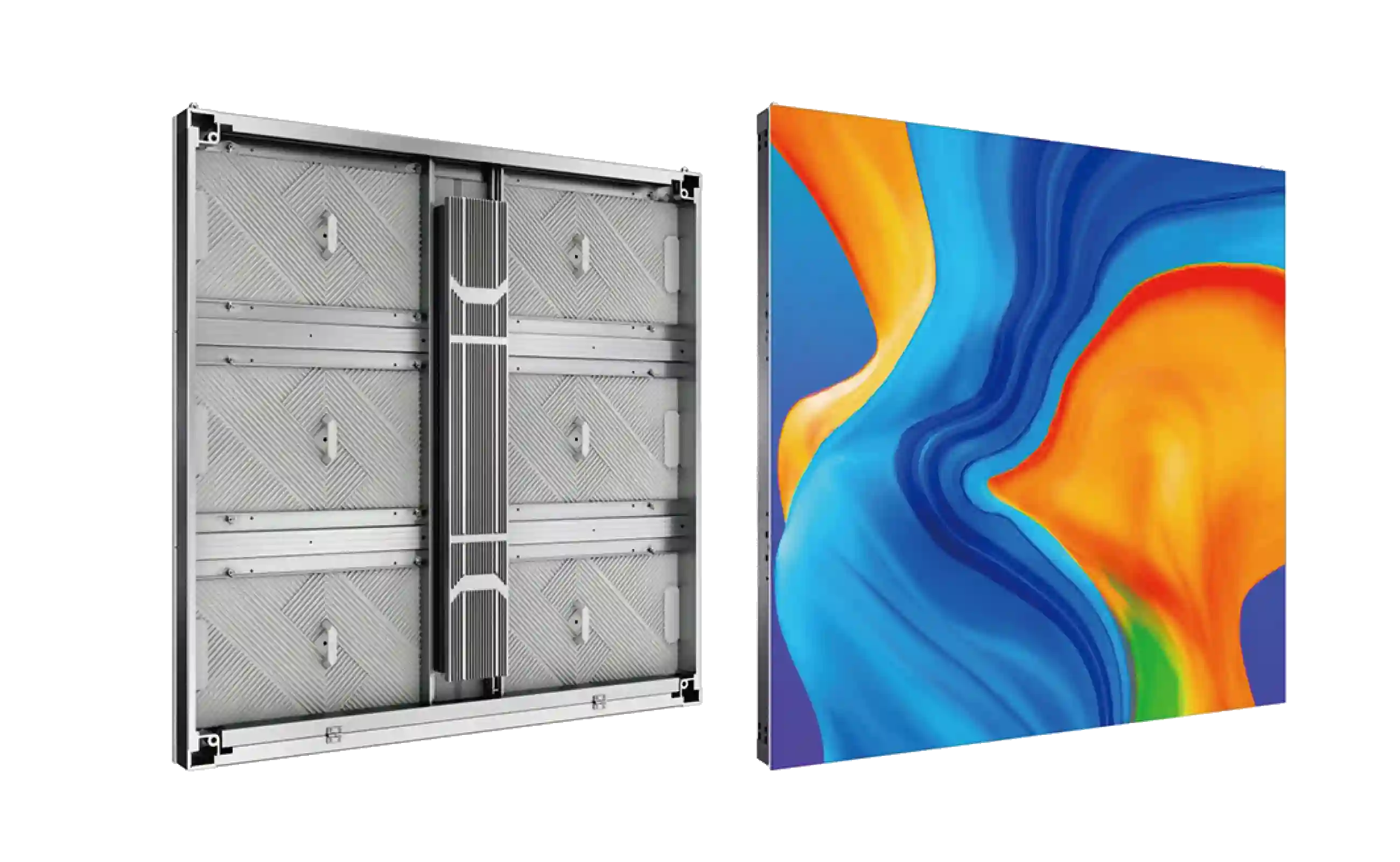

High-Definition LED Video Board & Scoreboard Screen for Sports Arenas
- Multi‑use for pro sports venues: central video boards, scoreboards, replay screens
- Aluminum cabinet with integrated heat dissipation, stable operation in tough environments
- Precision fast‑lock for seamless splicing; lightweight to reduce rigging load
- High‑contrast vivid visuals, ultra‑wide viewing angles
- Clear presentation of match moments, live scores and sponsor graphics for all spectators

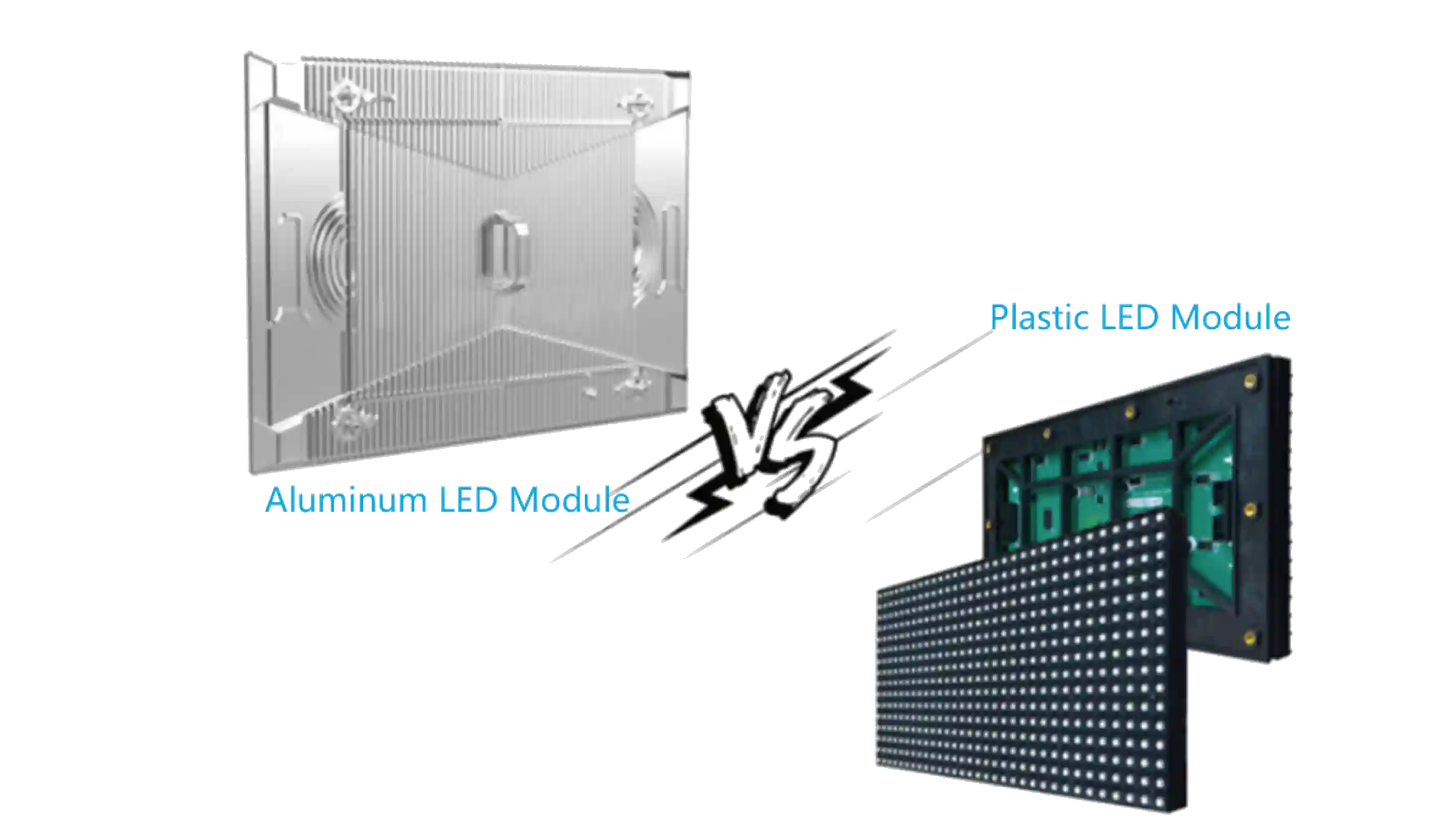

Advanced Aluminum LED Module vs. Plastic: Superior Heat Dissipation & Durability
The aluminum LED module features a screw-free edge lock structure, fully sealed protection, and excellent heat dissipation performance. With high thermal conductivity of 237 W/mK, strong mechanical strength, and eco-friendly recyclable material, it ensures stable performance and long lifespan for outdoor stadium LED displays.

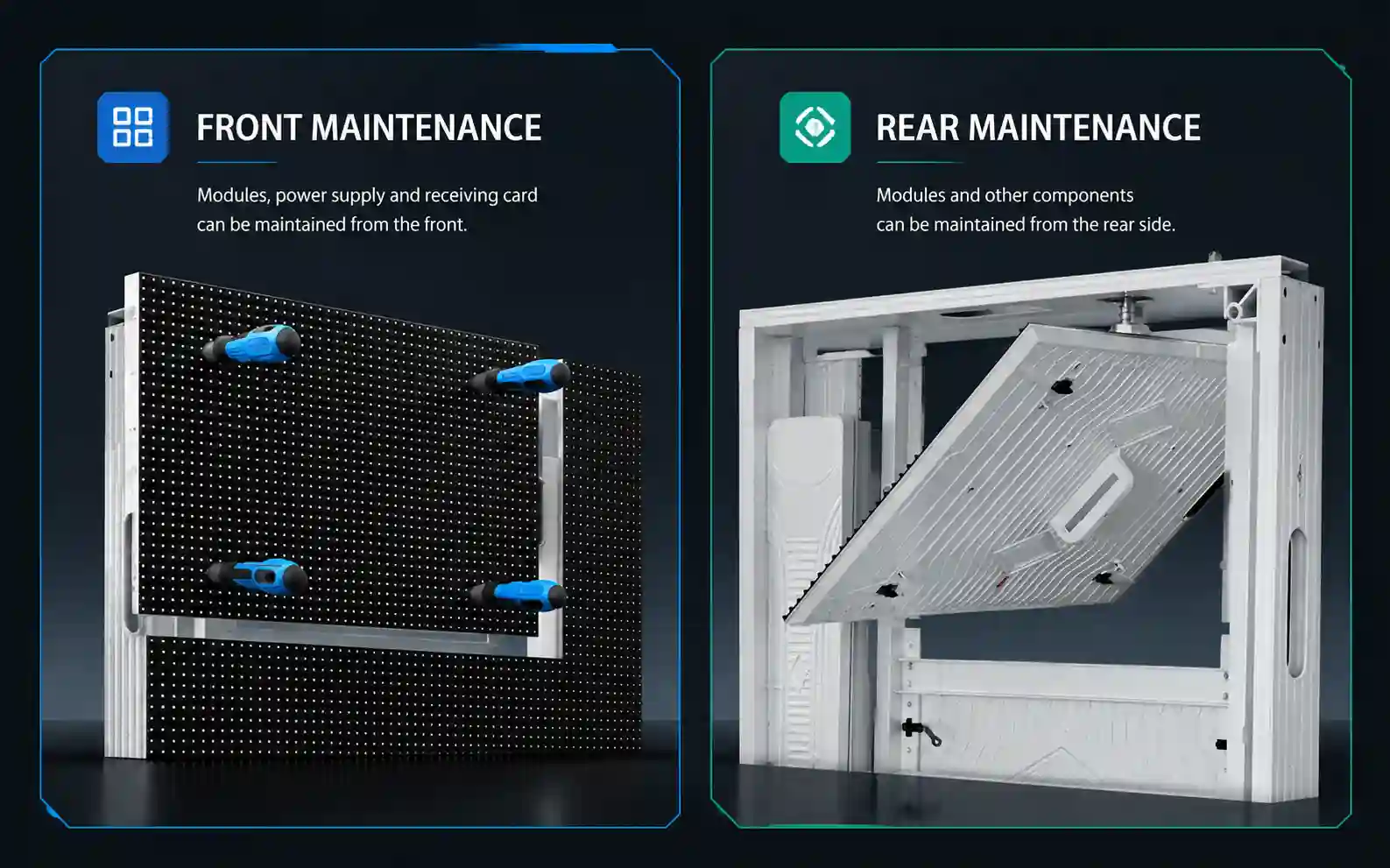

Advanced Front and Rear Maintenance LED Display for Stadium and Outdoor Applications
Featuring a flexible front and rear maintenance design, this LED display solution allows quick access to LED modules, power supplies, and receiving cards from different installation environments. The convenient maintenance structure reduces downtime, simplifies system servicing, and improves long-term reliability for indoor and outdoor LED display applications.
Energy-Saving Common Cathode LED Display with Eco-Friendly Design and Superior Heat Dissipation

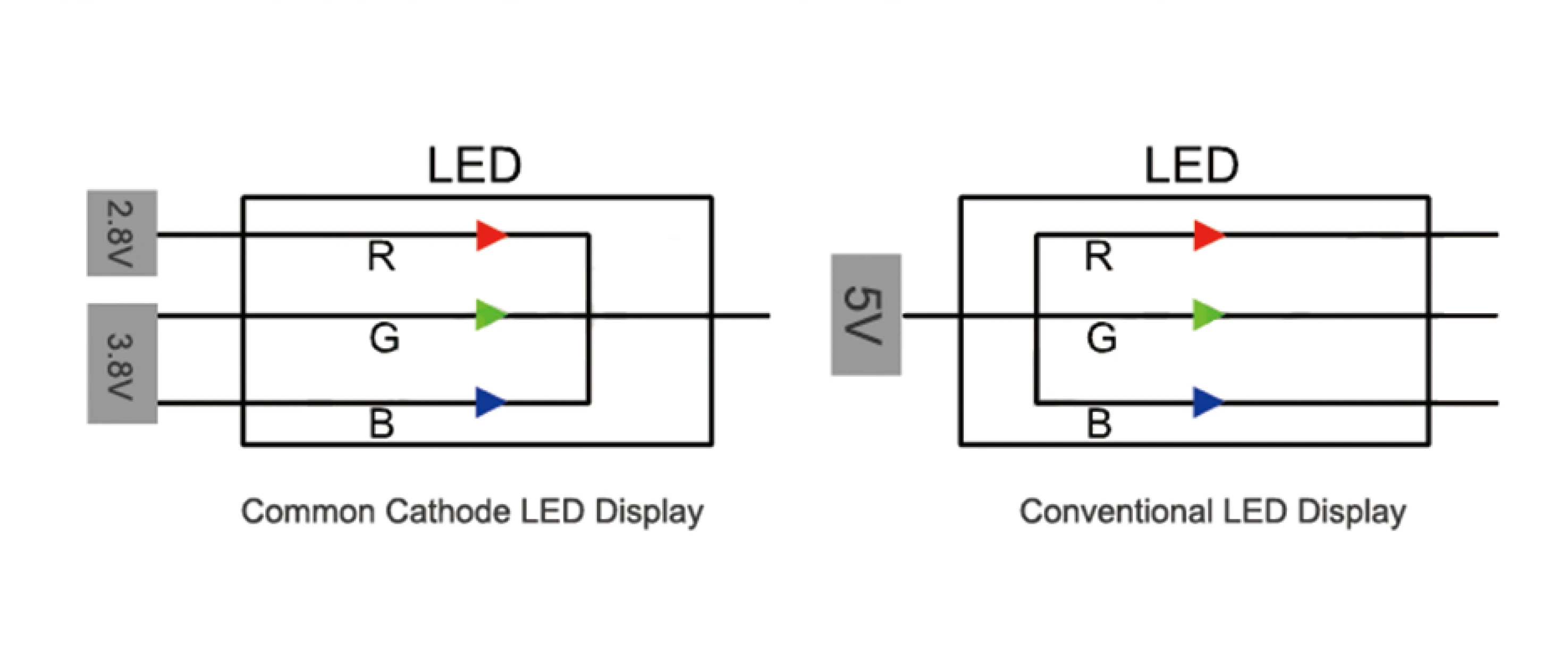

The Common Cathode LED Display technology reduces power consumption by providing optimized voltage control for RGB LEDs. Combined with excellent heat dissipation and recyclable materials, it ensures stable operation, longer service life, and reduced operating costs for outdoor LED screens.
Seamless 90° Curved Corner LED Display Solution

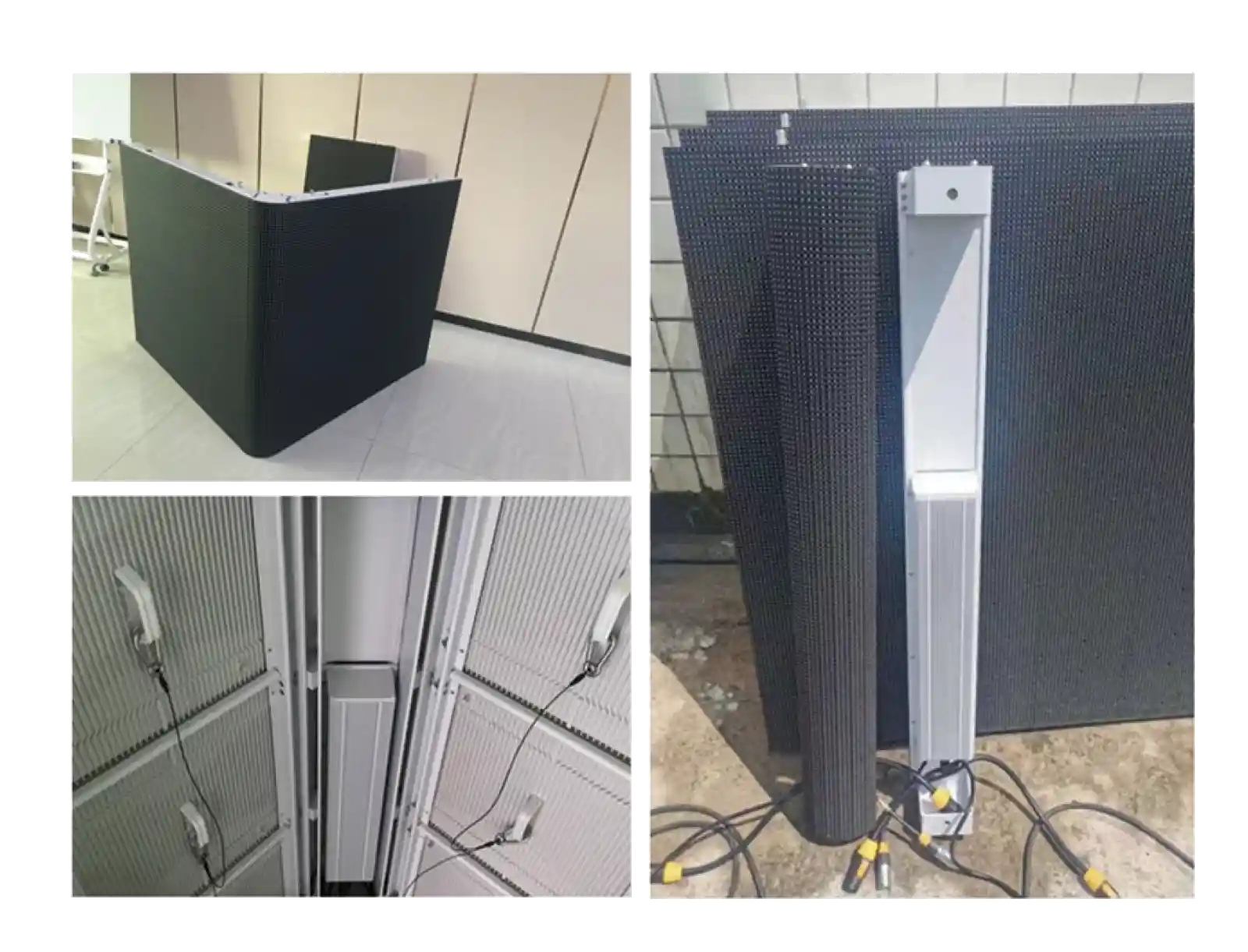

Eliminate visual gaps and create a perfectly continuous image with our Seamless Curved Corner Solution. Specially designed for 90° right angle installations, this innovative curved transition module completely removes the harsh black lines and physical gaps typically found in standard perpendicular setups.
Supported by our fully customizable LED display cabinets, this architecture allows for flawless wraps around stadium corners, structural columns, and bespoke central video boards. It guarantees an immersive, uninterrupted viewing experience from any angle, elevating the visual standard of your entire venue.
Videos
Related Videos
Video Tutorial
How to Install a Modular LED Video Scoreboard Display
Extreme Weather Simulation

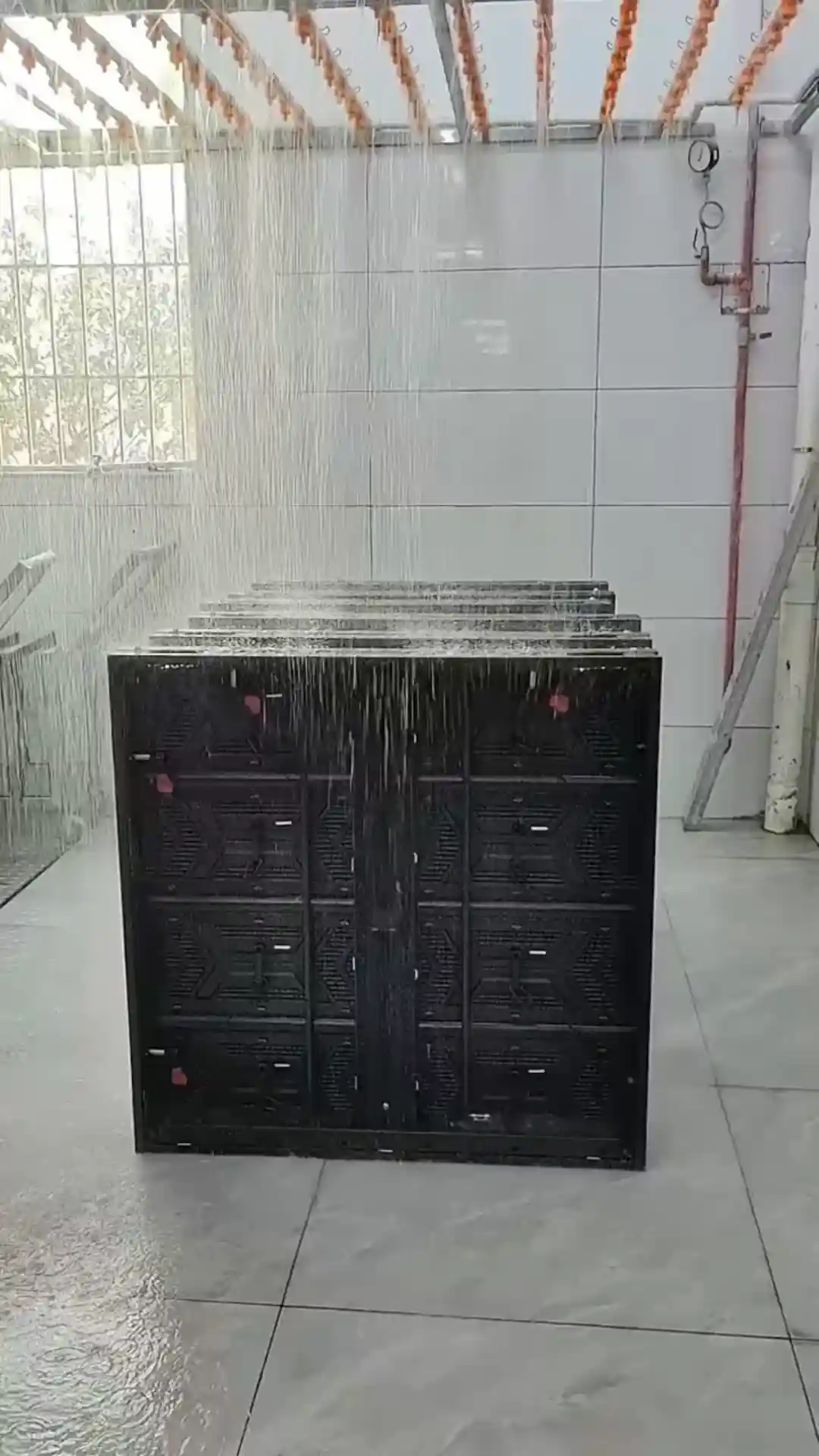

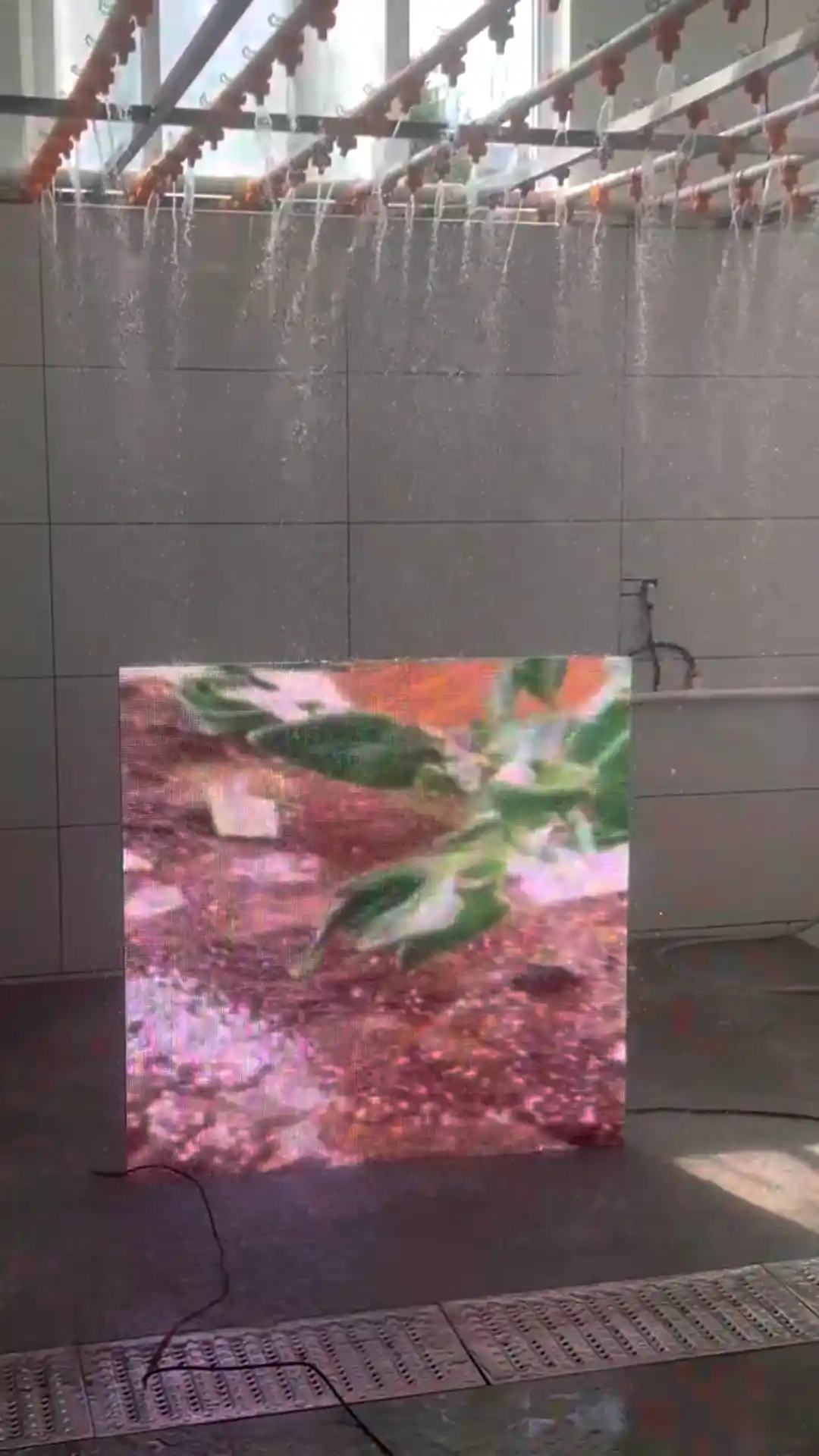

Waterproof LED Screen Testing at Rigard Factory
Extreme Weather Simulation
Waterproof LED Screen Testing at Rigard Factory
Project Gallery
Successfull Cases
Normal Scoreboard Screen
56m² P9 Scoreboard for a Outdoor Stadium
View More Images
Giant Scoreboard Screen
118m² P10 Scoreboard for a Outdoor Football Stadium
View More Images
Giant Scoreboard Screen
92m² P9 Scoreboard for a Outdoor Football Stadium
View More Images
Specifications
Product Specifications
| Pixel Pitch | P2.97 | P3.91 | P6.25 | P7.81 |
|---|---|---|---|---|
| Module Size(mm) | 500*250 | 500*250 | 500*250 | 500*250 |
| Panel Size(mm) | 1000*1000*95 | 1000*1000*95 | 1000*1000*95 | 1000*1000*95 |
| Panel Pixel | 336*336 | 256*256 | 160*160 | 128*128 |
| Pixel Configuration | SMD | SMD | SMD | SMD |
| Soft Mask | NONE | NONE | NONE | NONE |
| Brightness | 5000 cd / ㎡ 8000 cd / ㎡(Optional) |
6000 cd / ㎡ 10000 cd / ㎡(Optional) |
6000cd / ㎡ 10000 cd / ㎡(Optional) |
6000 cd / ㎡ 10000 cd / ㎡(Optional) |
| Maintenance Method | Front& Rear | Front& Rear | Front& Rear | Front& Rear |
| Gray Scale | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color |
| Refresh Frequency | PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
| Input Power Frequency | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz |
| Input Voltage(AC) | 100‑240 | 100‑240 | 100‑240 | 100‑240 |
| Ingress Protection | IP67 | IP67 | IP67 | IP67 |
| Max Power Consumption | 800Watt/㎡(Standard One) 500Watt/㎡(Energy Saving One) |
800Watt/㎡(Standard One) | 800Watt/㎡(Standard One) | 800Watt/㎡(Standard One) |
| Average Power Consumption | 400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
400Watt/㎡(Standard One) 200Watt/㎡(Energy Saving One) |
| Panel Weight(Kgs) | 32 | 32 | 32 | 32 |
| Viewing Angle | Horizontal140 deg;Vertical 140 deg | |||
| Operating environment | Temperature:‑20°C ~+60°C Humidity:10%‑90%RH | |||
