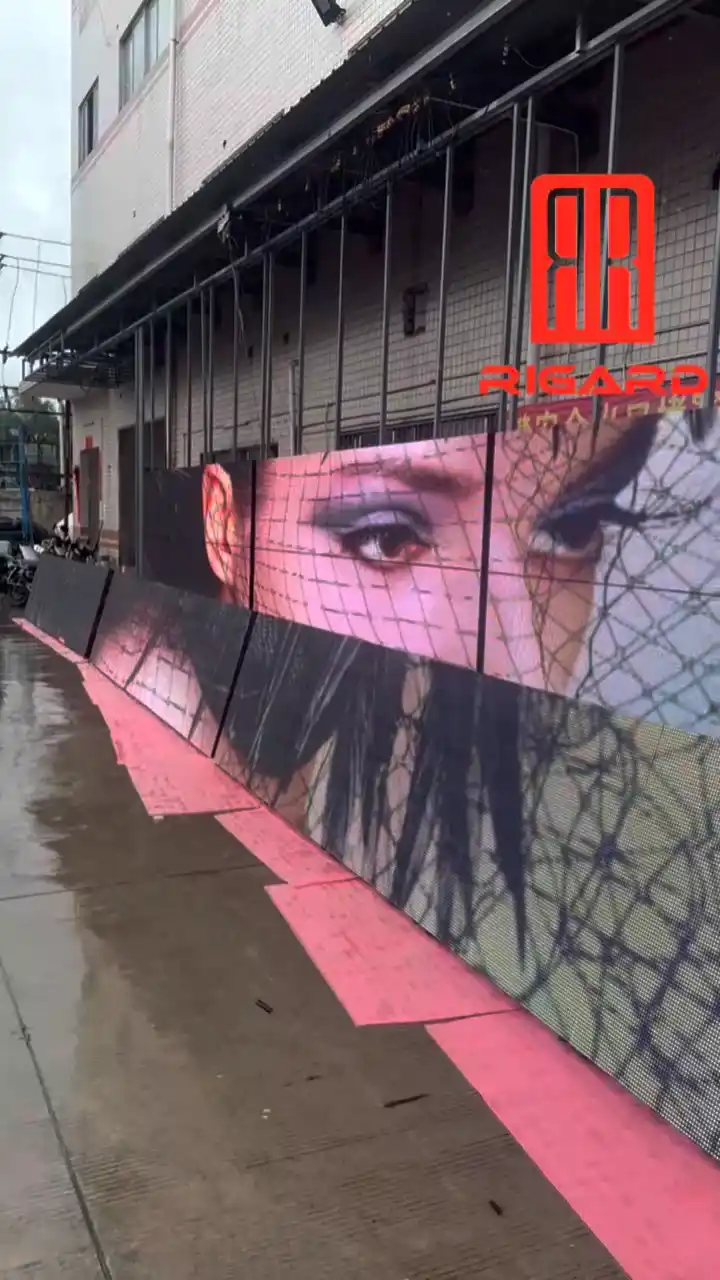

Perimeter LED Display Performance in Heavy Rain
Popular Style

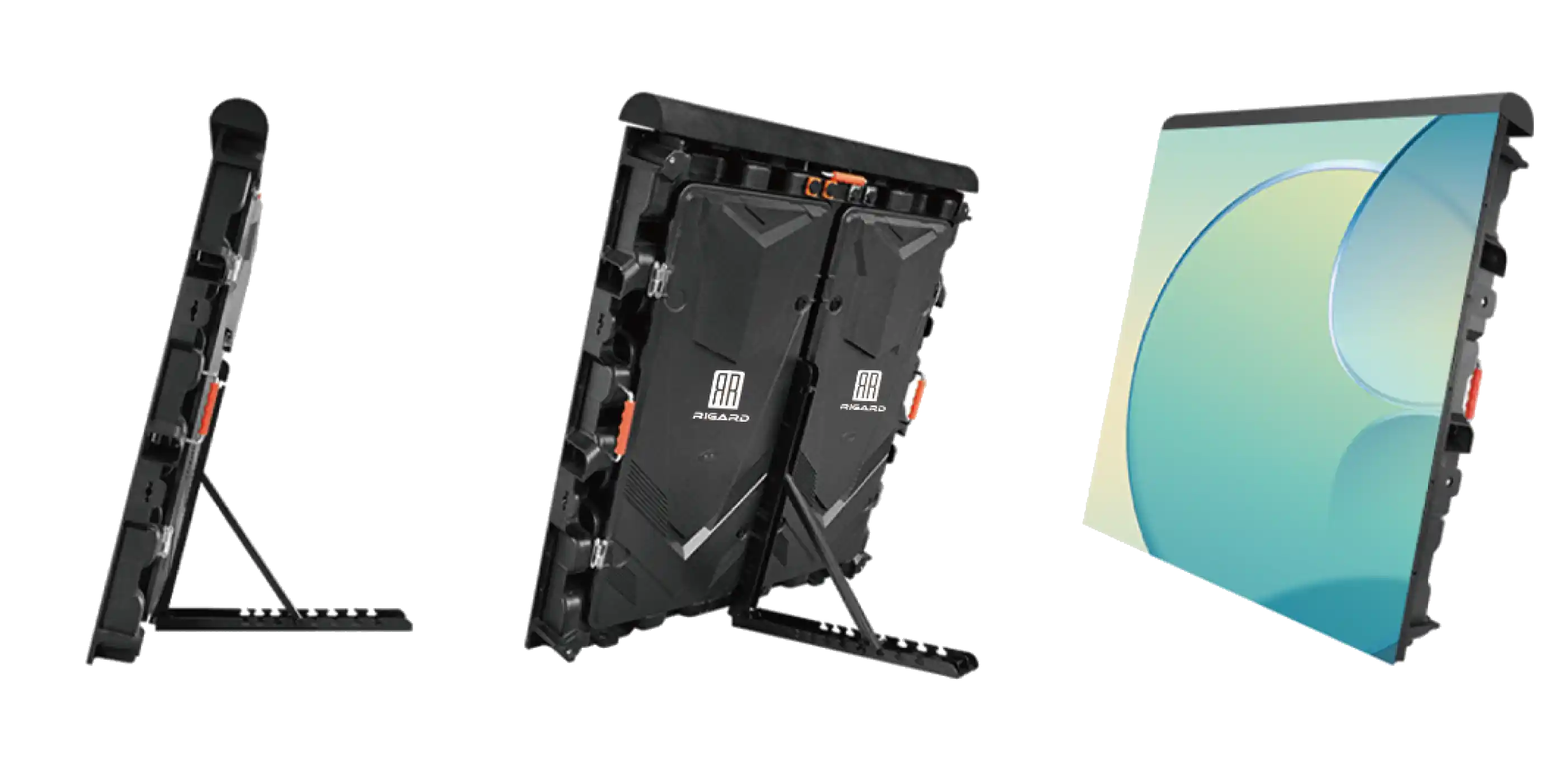

Weather-Ready Stadium LED Display
- Engineered specifically for outdoor sports scenarios
- High‑brightness output for outdoor visibility
- Robust cabinet protection for long‑term durability
- Optimized viewing angles for stadium audiences
- Reliable performance for football & professional venues
- Supports ad playback, live events & real‑time content

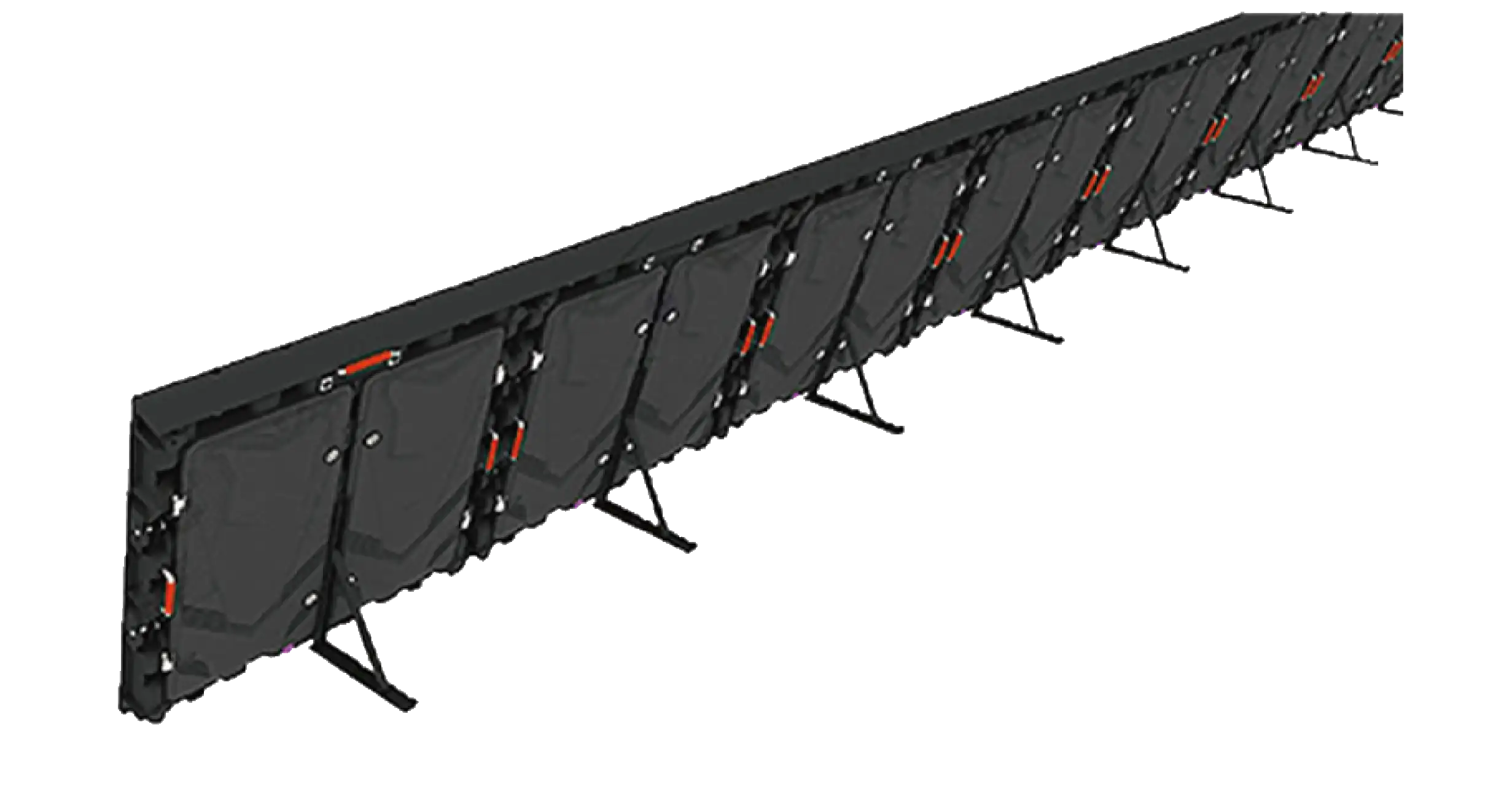

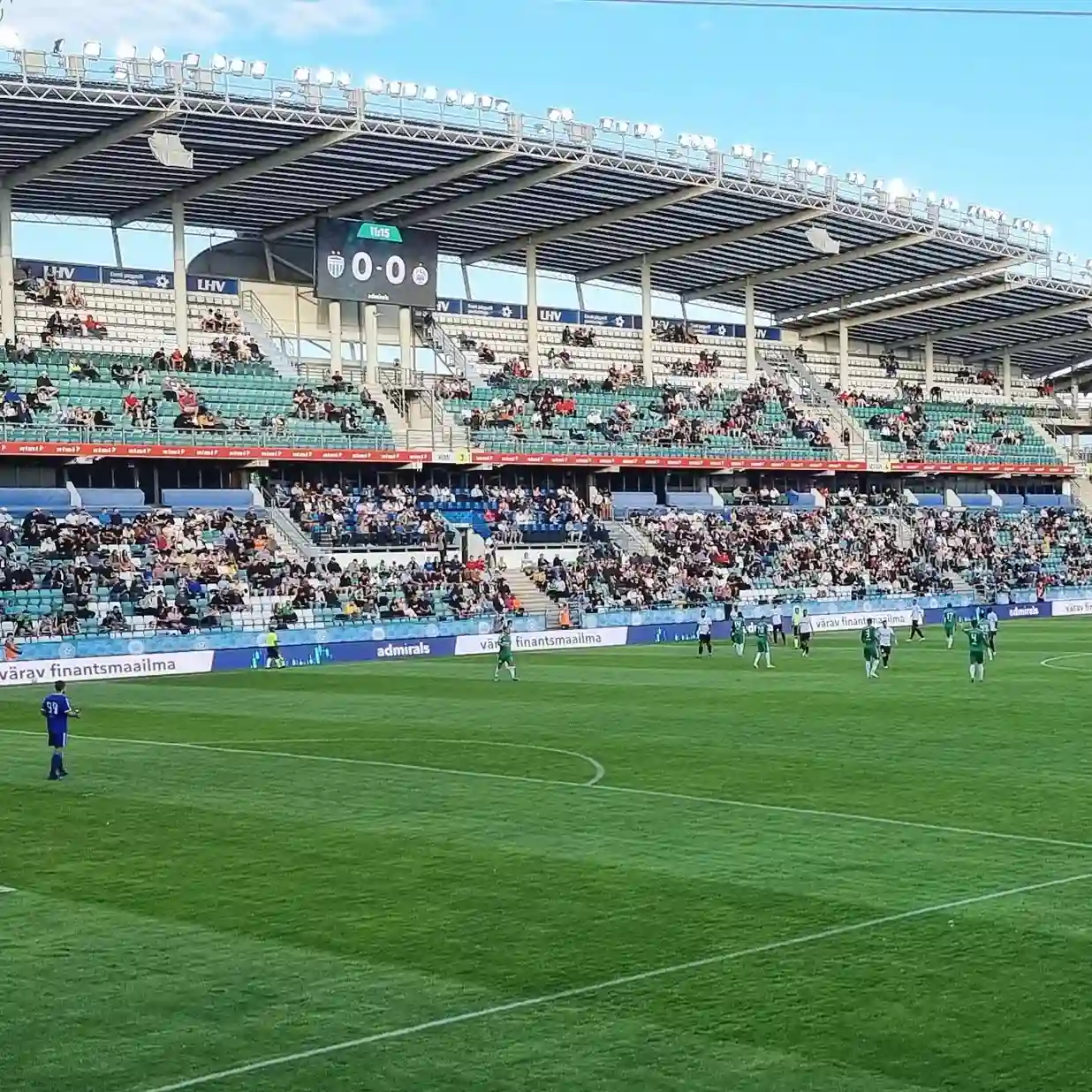

Seamless Stadium Integration
Designed for professional sports venues, the Perimeter LED Display delivers high brightness, high refresh rates, and reliable outdoor performance. The lightweight magnesium alloy cabinet ensures easy installation and maintenance, while the seamless alignment design provides a smooth visual experience around the stadium field.

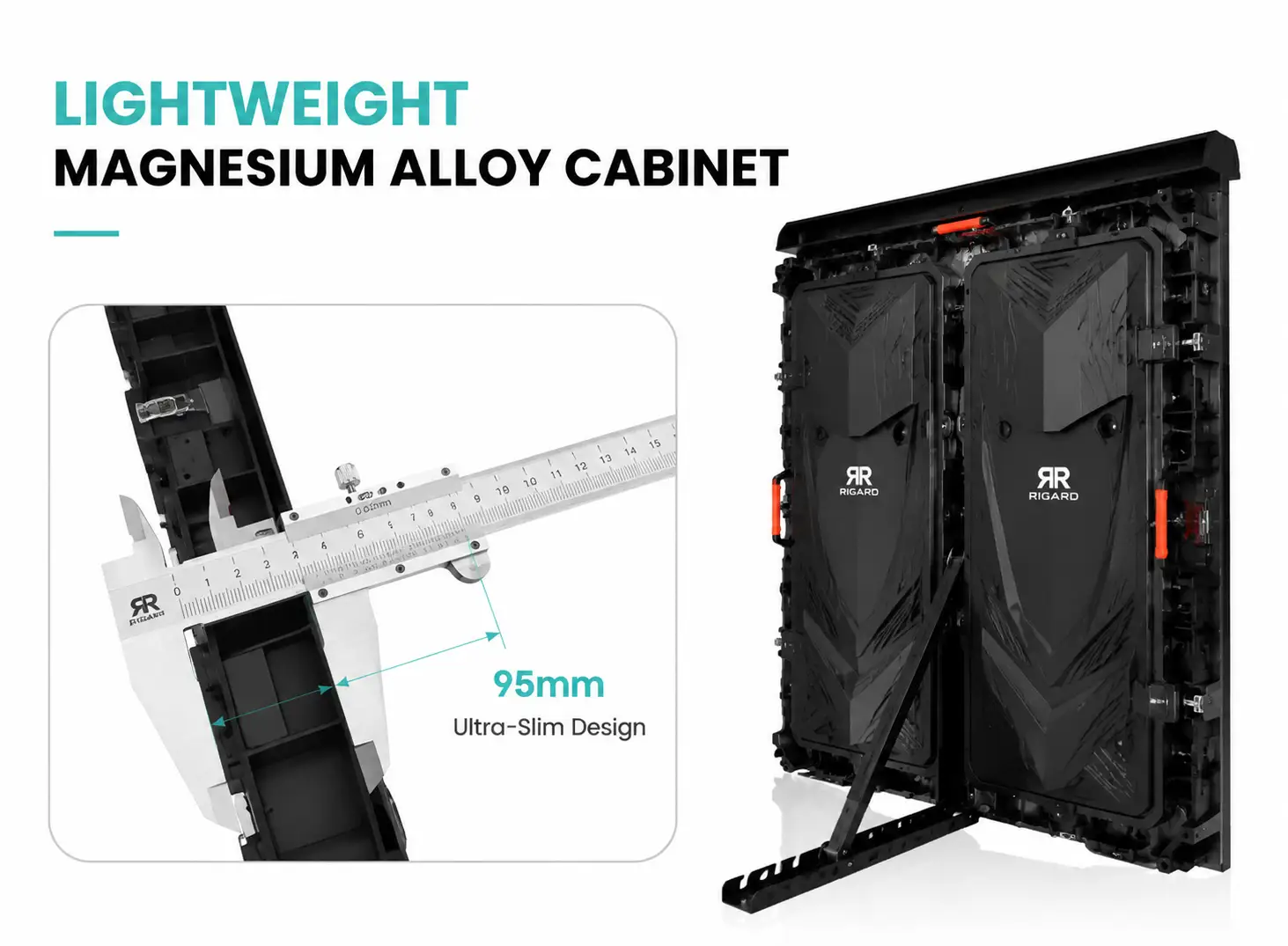

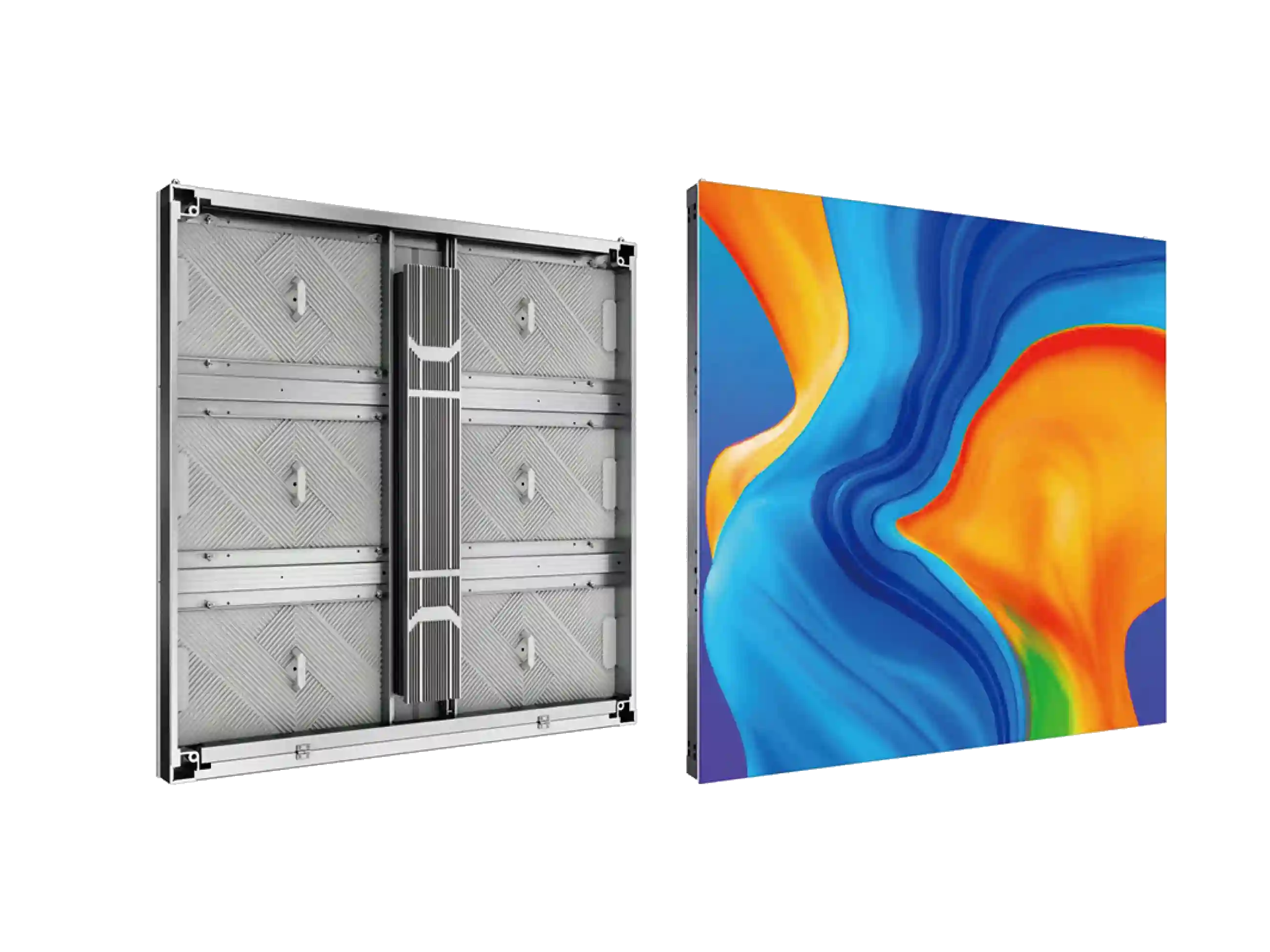

Ultra-Lightweight & Slim Magnesium Alloy Cabinet
- Ultra-Lightweight & Slim Design: High-grade magnesium alloy construction slashes cabinet weight, lowering freight expenses and structural load on venue supports.
- Rapid Matchday Setup: Ergonomic handles and lightweight casing enable fast, labor-saving transport and quick-lock assembly around sports perimeters.
- Streamlined Maintenance: High structural accuracy and modular layout ensure tool-free, effortless rear service during high-intensity sporting events.

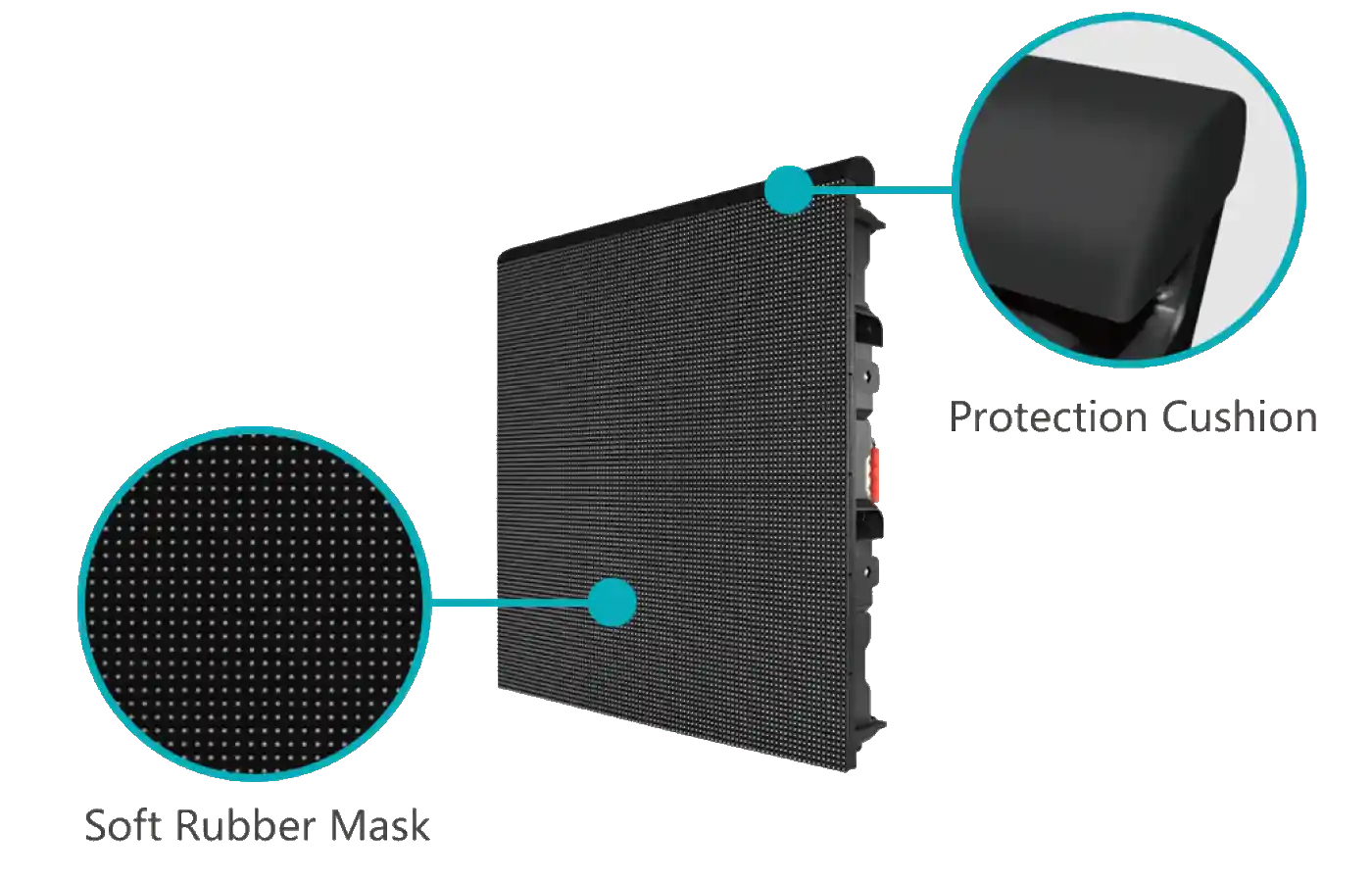

Player-Safe Dual Impact Protection Design
Engineered specifically for high-intensity sports arenas, this perimeter LED cabinet features an impact-absorbing top protection cushion paired with an ultra-flexible soft rubber mask. This dual-safety architecture effectively cushions athlete collisions to prevent on-field injuries while shielding delicate LED diodes from heavy impacts—fully aligning with international sports venue safety and compliance standards.

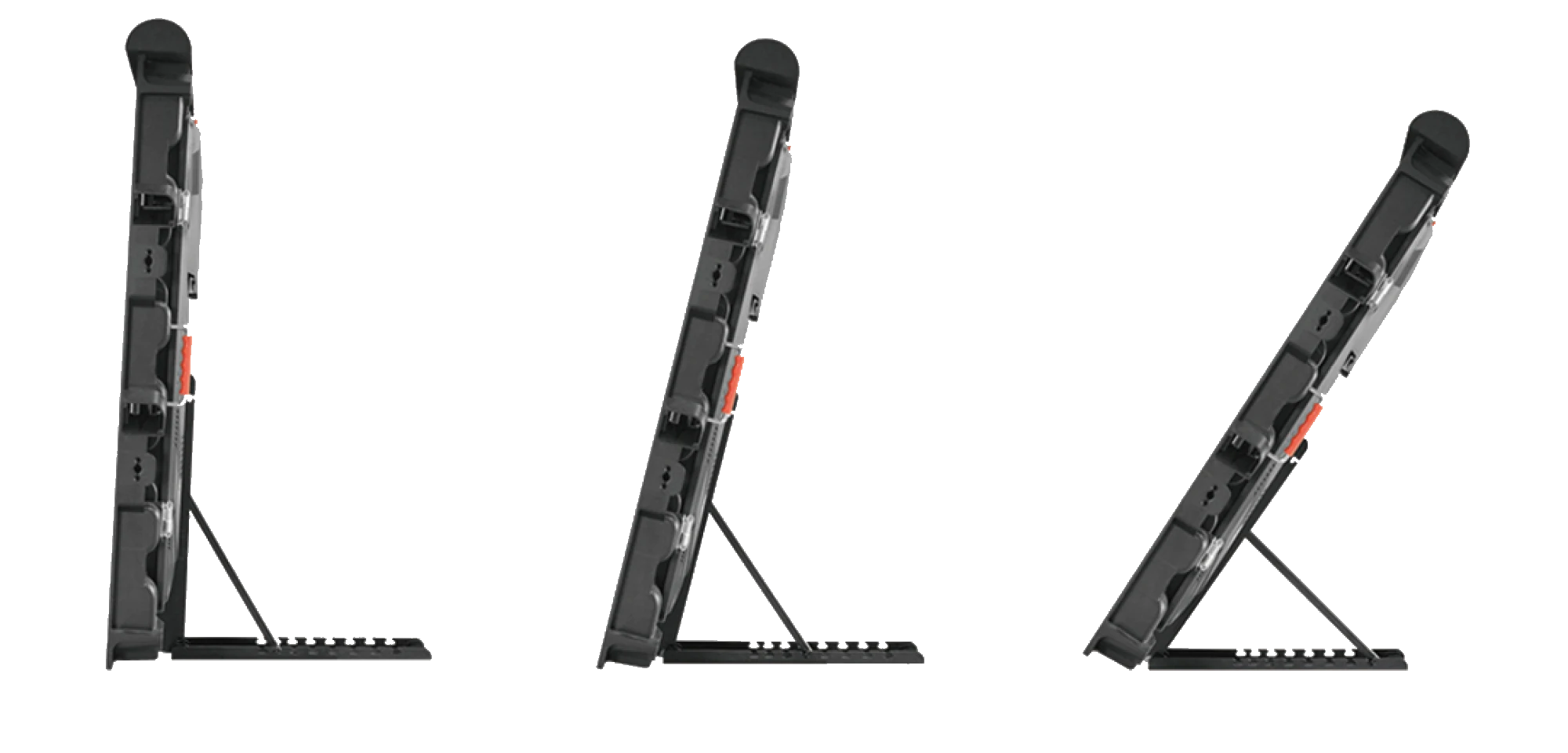

Flexible Viewing Angle Adjustment for Better Visibility
The Perimeter LED Display features an adjustable cabinet angle from 65° to 90°, allowing flexible installation to optimize viewing performance. This innovative design ensures clear and consistent visibility for audiences from different seating areas, making it an ideal solution for professional sports stadiums and outdoor events.

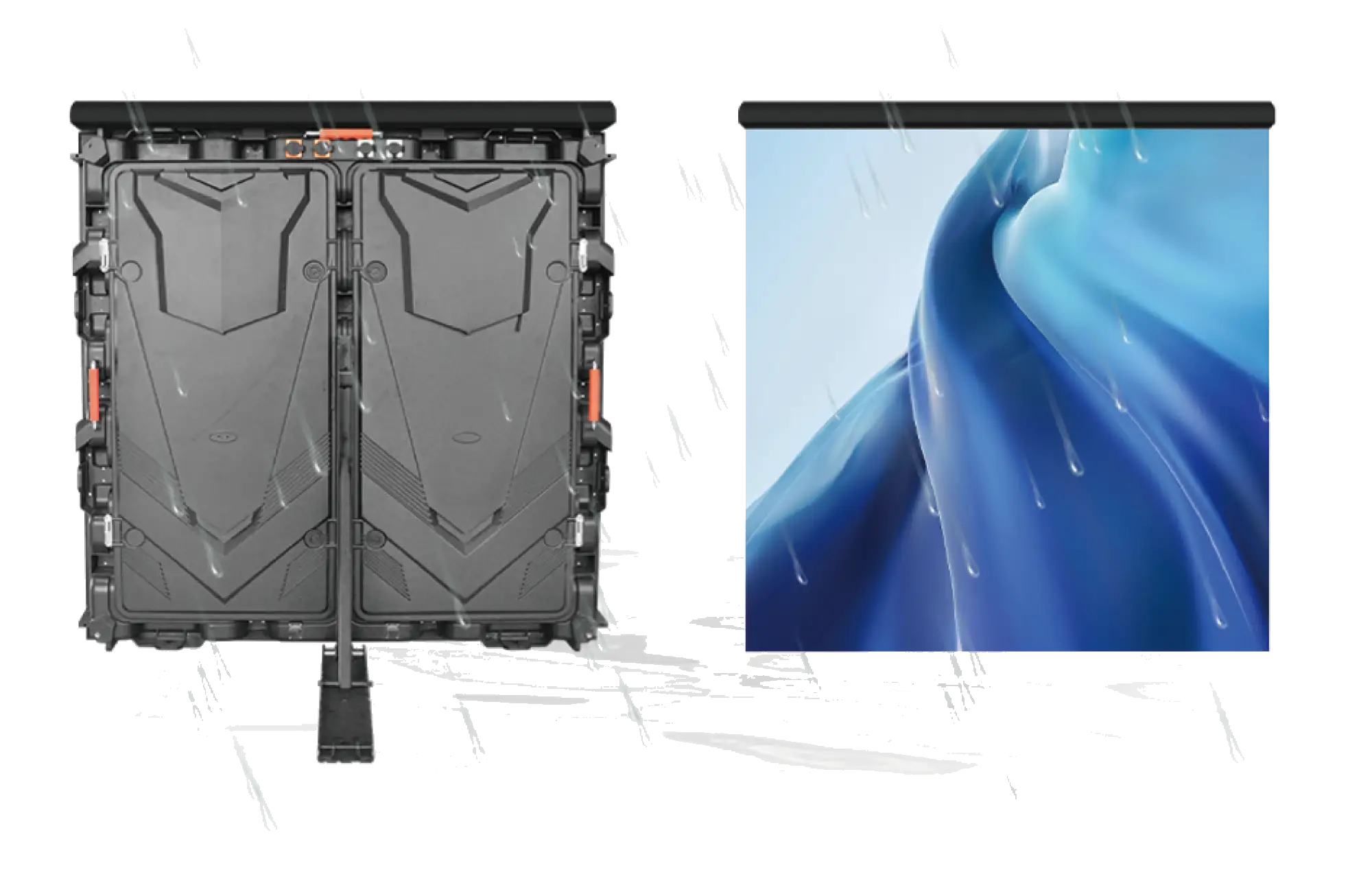

IP65 Waterproof Protection for Outdoor Reliability
Designed for outdoor sports venues and harsh environments, the perimeter LED display features an IP65-rated waterproof cabinet design that provides reliable protection against rain, dust, and moisture. The durable structure ensures stable performance and long-term operation without additional protective covers.

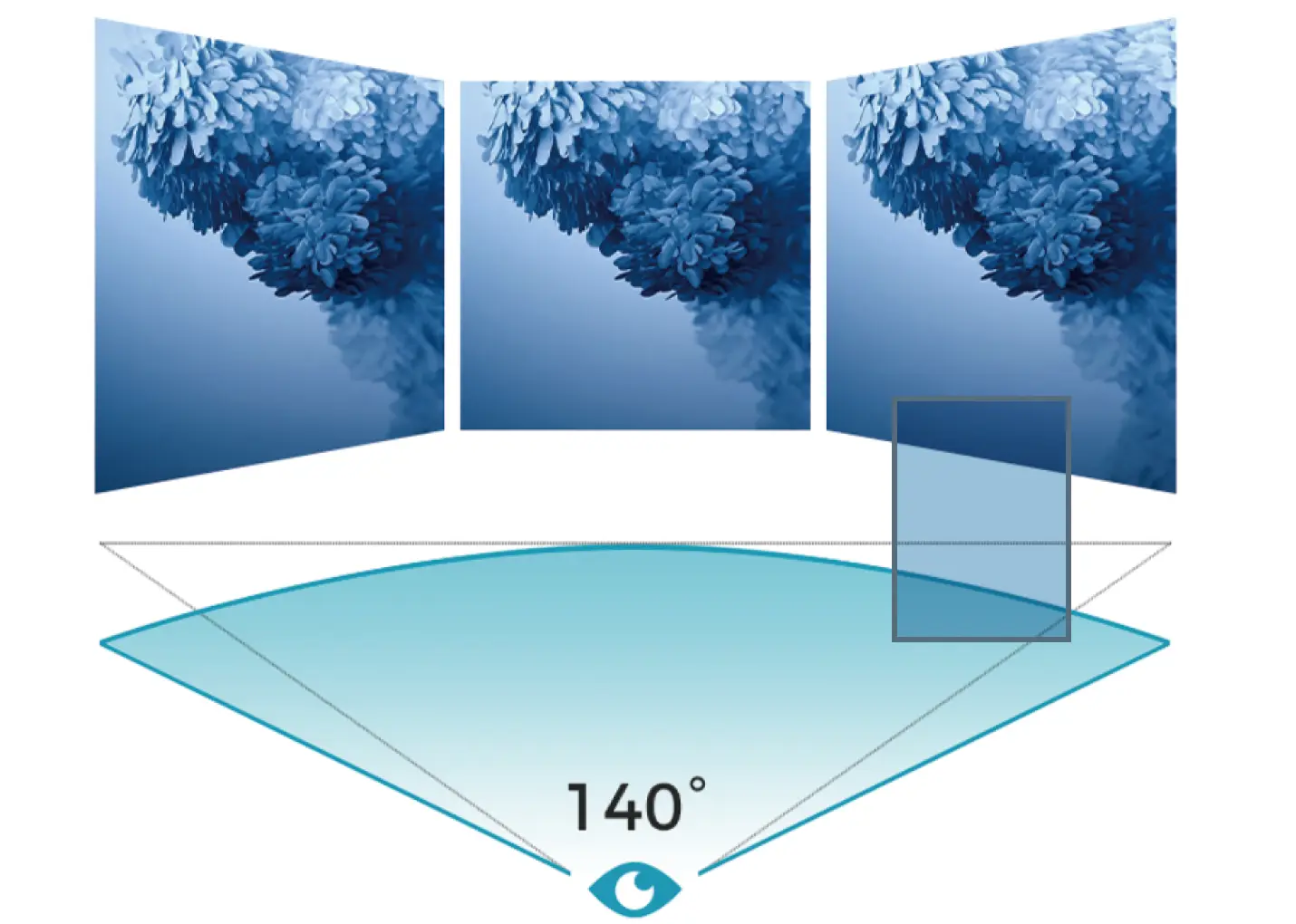

140° Ultra-Wide Viewing Angle for Maximum Arena Coverage
Engineered with an ultra-wide 140° viewing angle, this stadium LED display ensures uniform brightness and true-to-life color fidelity from every seat in the venue. By eliminating off-axis color distortion and contrast loss, it delivers razor-sharp match action and vivid sponsor commercials to fans in corner tiers, bleachers, and VIP suites alike.

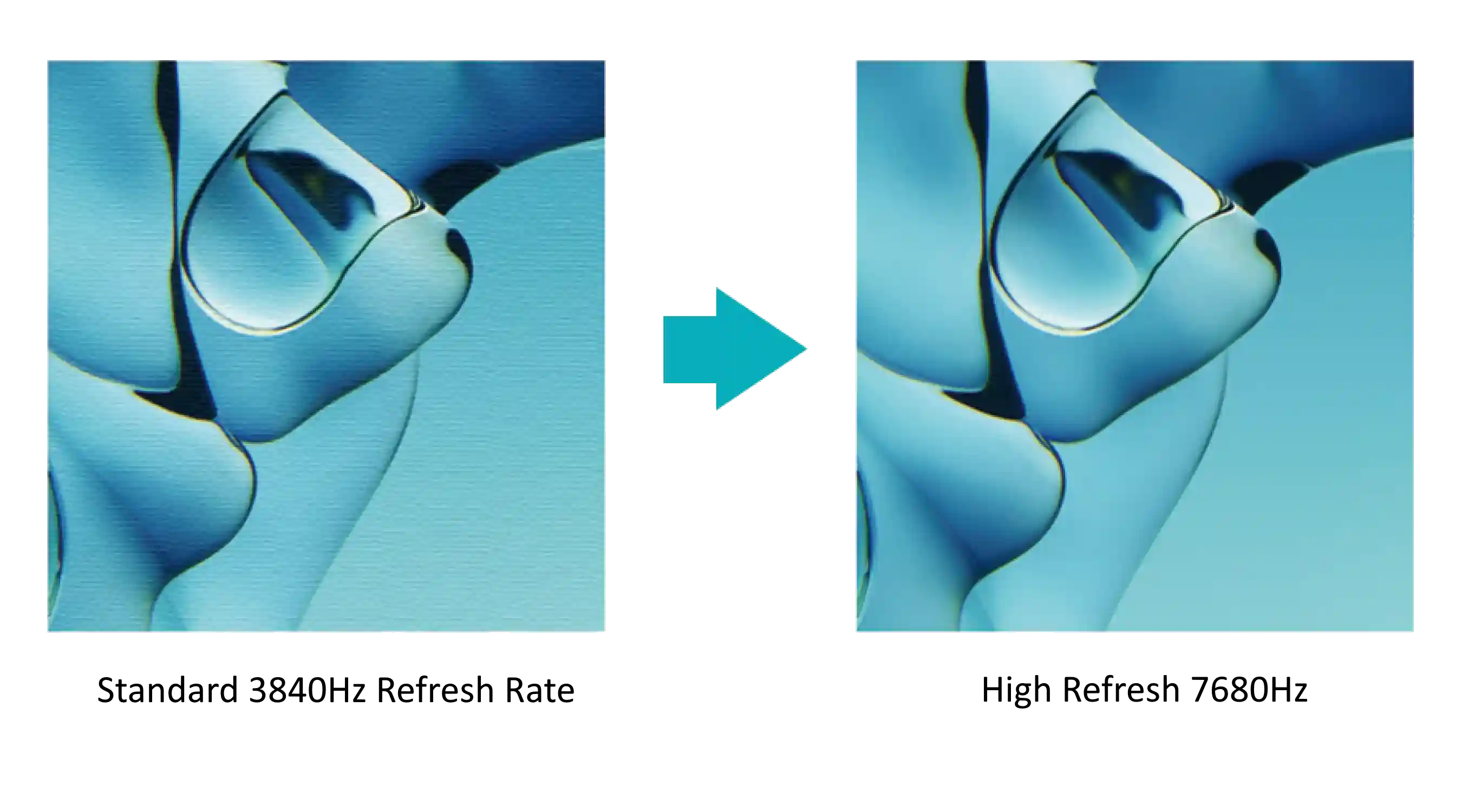

7680Hz High Refresh Rate Performance
Engineered for professional sports environments and high-speed visual applications, the Perimeter LED Display features a 7680Hz high refresh rate to deliver ultra-smooth images with reduced motion blur and flicker. It ensures clear, stable, and camera-friendly visuals for live broadcasts, stadium events, and dynamic content playback.
Videos
Related Videos
Product Demonstration Videos
Project Gallery
Successfull Cases
Indoor Perimeter LED Display
Refresh Rate: ≥3840HZ; Screen Size: 80sqm
View More Images
Outdoor Perimeter LED Display
Brightness: 8000 cd/㎡; Screen Size: 280sqm
View More Images
Outdoor Perimeter LED Display
Brightness: 8000 cd/㎡; Screen Size: 290sqm
View More Images
Specifications
Product Specifications
| Pixel Pitch | P4 | P5 | P6.67 | P8 | P10 |
|---|---|---|---|---|---|
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Panel Size(mm) | 960*960*95 | 960*960*95 | 960*960*95 | 960*960*95 | 960*960*95 |
| Panel Pixel | 240*240 | 192*192 | 144*144 | 120*120 | 96*96 |
| Pixel Configuration | SMD | SMD | SMD | SMD | SMD |
| Soft Mask | Support | Support | Support | Support | Support |
| Brightness | 6000 cd / ㎡ 8000 cd / ㎡(Optional) |
5500 cd / ㎡ 10000 cd / ㎡(Optional) |
5500 cd / ㎡ 10000 cd / ㎡(Optional) |
6500 cd / ㎡ 10000 cd / ㎡(Optional) |
7000 cd / ㎡ 10000 cd / ㎡(Optional) |
| Maintenance Method | Rear Front(Optional) |
Rear Front(Optional) |
Rear Front(Optional) |
Rear Front(Optional) |
Rear Front(Optional) |
| Gray Scale | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color | 65,536 levels per color |
| Refresh Frequency | PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 3840 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
PWM 7680 Hertz PWM 7680 Hertz(Optional) PWM 15360Hertz(Optional) |
| Input Power Frequency | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz | 50 or 60 Hertz |
| Input Voltage(AC) | 100‑240 | 100‑240 | 100‑240 | 100‑240 | 100‑240 |
| Ingress Protection | IP65 | IP66 | IP66 | IP66 | IP66 |
| Max Power Consumption | 800Watt/㎡(Standard One) | 800Watt/㎡(Standard One) | 800Watt/㎡(Standard One) | 800Watt/㎡(Standard One) | 800Watt/㎡(Standard One) |
| Average Power Consumption | 400Watt/㎡(Standard One) | 400Watt/㎡(Standard One) | 400Watt/㎡(Standard One) | 400Watt/㎡(Standard One) | 400Watt/㎡(Standard One) |
| Panel Weight(Kgs) | 29 | 29 | 29 | 29 | 29 |
| Viewing Angle | Horizontal140 deg;Vertical 140 deg | ||||
| Operating environment | Temperature:‑20°C ~+60°C Humidity:10%‑90%RH | ||||
